SUGINO PUMPS

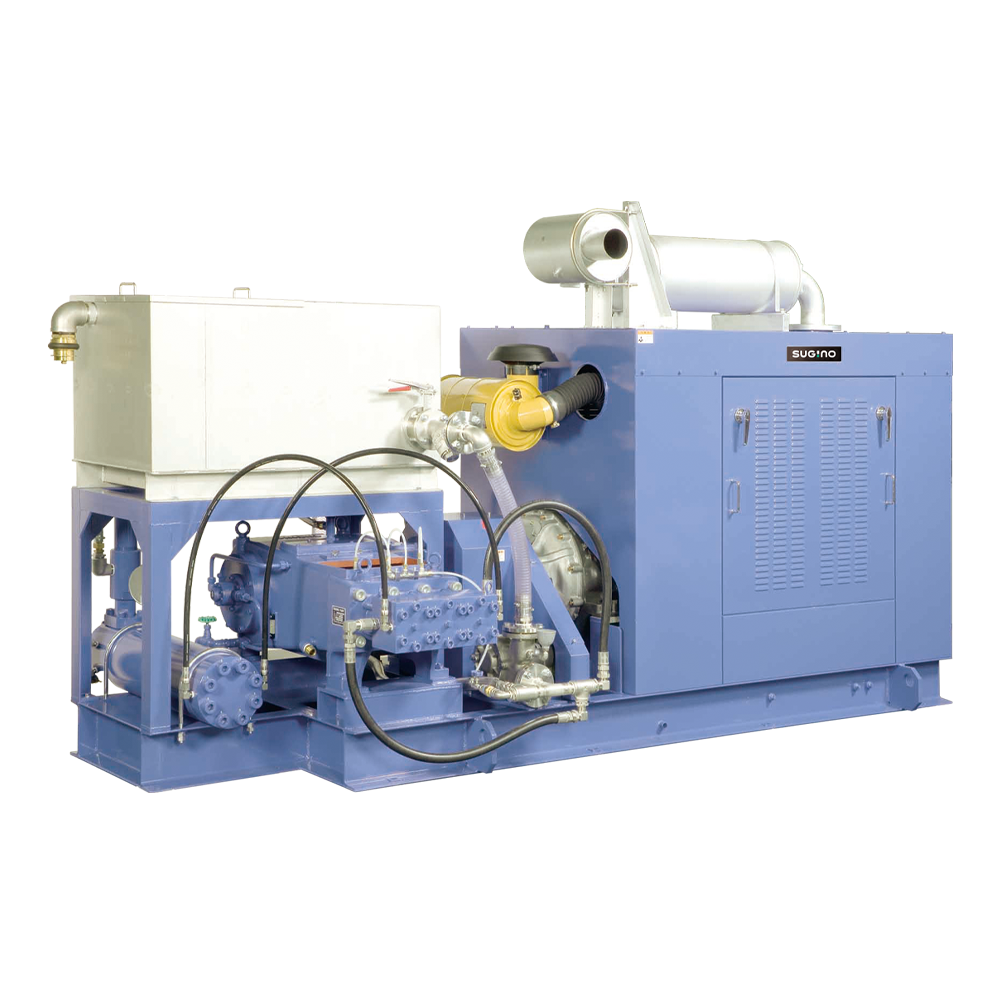

Engine Driven Pump Units

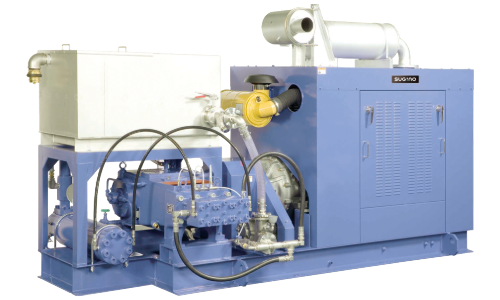

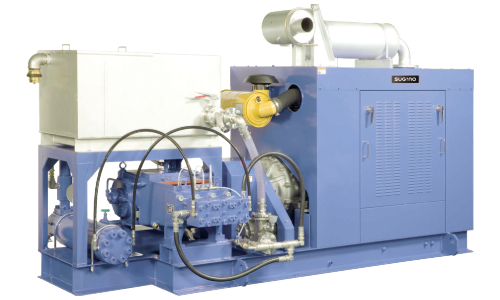

JPHP
Versatile ultra-high-pressure pump units designed for a wide range of applications, from cleaning to chipping.
With multiple model variations available, users can select the configuration that best fits their operational needs.
- Max. Discharge Pressure: 280 MPa
- Max. Flow Rate: 120 L/min.
- Applications: Plant equipment cleaning, peeling, and chipping.
- 4-ton truck mountable
Pressure conversion compatible: Pressure and flow rate can be changed by replacing the pump head and pressure regulator.

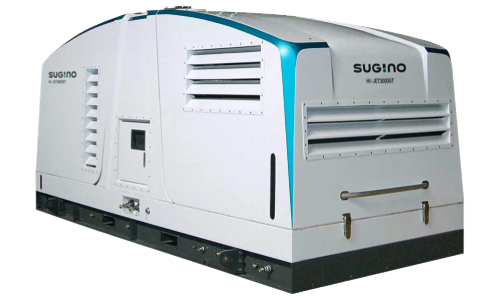

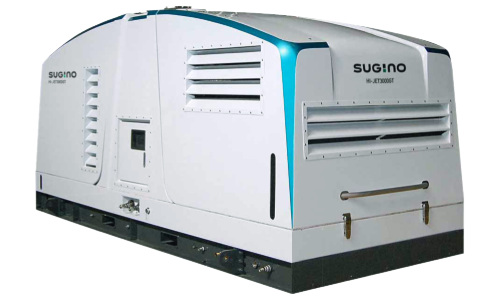

JPHP / HI-JET3000GT | JPHP
This unit features a high-output, eco-friendly engine that delivers a large flow rate while minimizing environmental impact.
Its clean and powerful performance makes it especially well-suited for demanding tasks such as chipping concrete structures.
- Max. Discharge Pressure: 280 MPa
- Max. Flow Rate: 45 L/min
- Applications: Peeling, chipping, etc.
- Soundproof design
- 4-ton truck mountable
Automatic operation: Engine speed is automatically controlled to maintain the selected pressure setting
Request a call or email, and a member of our Sugino team will get in touch to assist you.

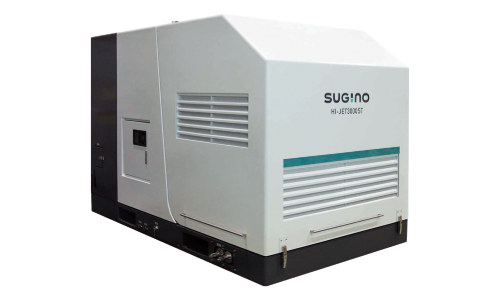

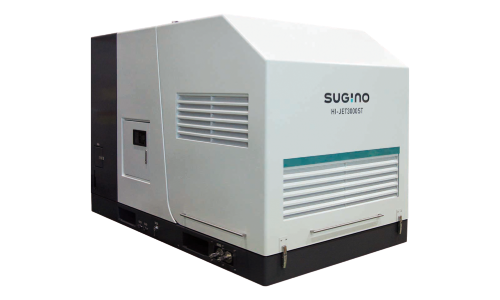

GP11 / HI-JET3000ST
These lightweight and compact pump units can be mounted on a 3-ton truck, making them ideal for use in confined spaces. They are especially well-suited for tasks such as asbestos removal at demolition sites and white line peeling on road surfaces.
- Max. Discharge Pressure: 245 MPa
- Max. Flow Rate: 28 L/min
- Applications: Peeling, chipping, etc.
- Soundproof design
- 3-ton truck mountable
Automatic operation: Automatically adjusts engine speed to maintain the selected pressure setting

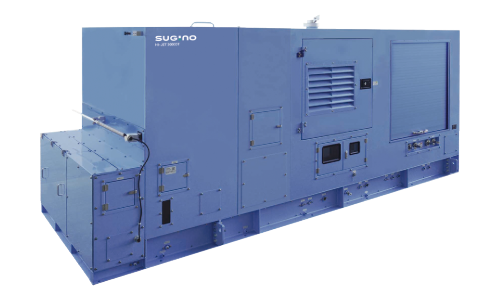

JPHP / HI-JET3000DT
These ultra-high-pressure, large-flow-rate pump units are equipped with dual pumps to deliver powerful performance. They are especially effective for chipping work on concrete structures.
- Max. Discharge Pressure: 245 MPa
- Max. Flow Rate: 78 L/min
- Applications: Chipping, etc.
- Simple soundproof design
- Ultra-high pressure / Large flow rate specifications
Automatic operation: Engine speed is automatically controlled to maintain the selected pressure setting

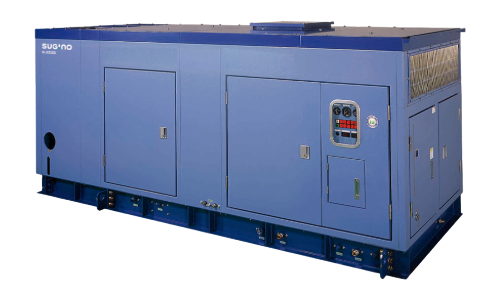

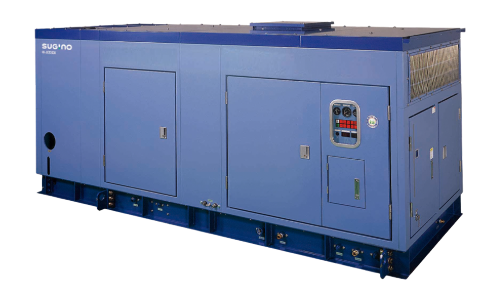

JPKP / HI-JET2000, JPHP / HI-JET3000
These models are among the most versatile for water jet blasting operations, offering an optimal balance between pressure and flow rate. They are ideal for a variety of tasks, including peeling, chipping, and concrete cutting. Lightweight and soundproof, they are well-suited for use in urban environments where noise control is essential.
- Max. Discharge Pressure: 300 MPa
- Max. Flow Rate: 27 L/min
- Applications: Peeling, chipping, etc.
- Soundproof design
- 4-ton truck mountable
Automatic operation: Engine speed is automatically adjusted to maintain the selected pressure setting

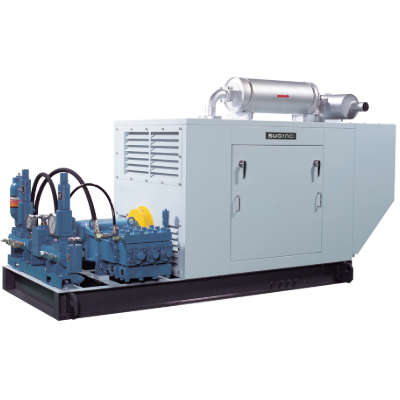

GP11
This compact pump unit features an engine directly coupled to a pump with built-in gears for high-performance cleaning operations.
- Max.Discharge Pressure : 33MPa
- Max. Flow Rate : 220L/min
- 4-ton truck mountable
Applications : Plant facility cleaning, water and sewer cleaning, etc

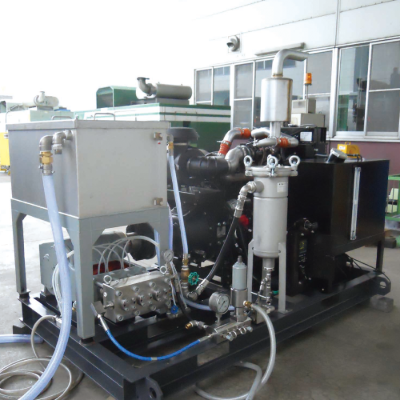

JPKP
The most lightweight engine-driven pump unit in the lineup offers portability without compromising performance.
- Max. Discharge Pressure : 170MPa
- Max. Flow Rate : 50L/min
- 3-ton truck mountable
Applications : Plant facility cleaning, etc

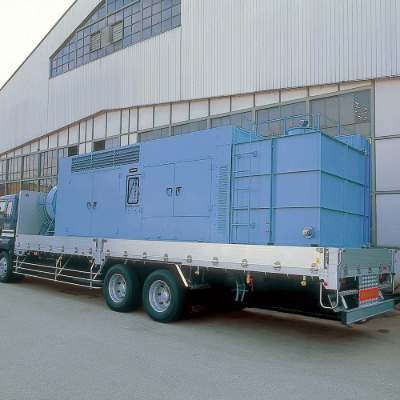

JCP500
High-pressure, large flow rate pump units equipped with a five-plunger pump, delivering powerful performance for demanding industrial applications.
- Max. Discharge Pressure : 150MPa
- Max. Flow Rate : 330L/min
Applications : Strong cleaning, chipping, etc
High pressure High flow rate spec.

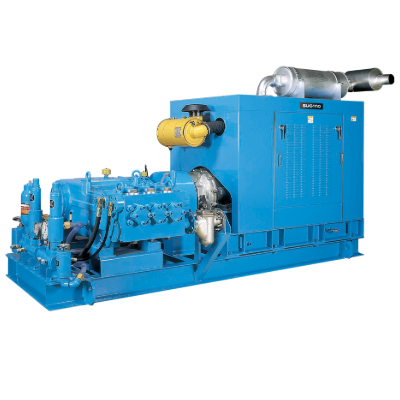

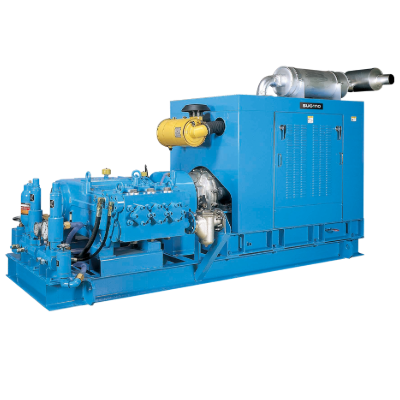

JCP170
This large flow rate pump unit is designed for a wide range of applications, including cleaning large-diameter or long-length tubes and chipping deteriorated concrete.
- Max. Discharge Pressure: 82MPa
- Max. Flow Rate: 200L/min
Applications: Plant facility cleaning, large-diameter tube cleaning, etc.
High/low pressure switchable type: Easily switch between high and low pressure with a single-handle operation, depending on the application

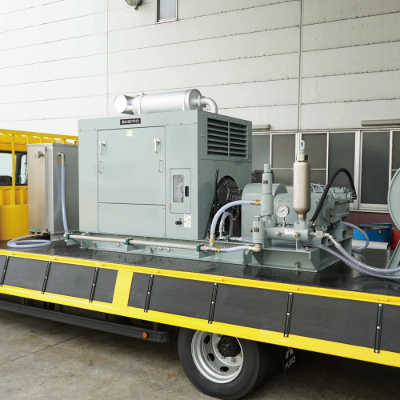

GP11
This lightweight and compact pump unit can be mounted on a 3-ton truck, making it ideal for mobile cleaning operations in tight or urban spaces.
- Max. Discharge Pressure: 77 MPa
- Max. Flow Rate: 180 L/min
- Applications: Plant facility cleaning, water and sewer cleaning, etc.
- 3-ton truck mountable
High/low pressure switchable type: Easily switch between high and low pressure with a large flow rate using a single-handle operation, depending on the application
