Hydrostatic Pressure Equipment


Servo Motor Driven Ultra-High
Hydrostatic Pressure Processing Equipment

Explore our broad line-up of equipment that generates hydrostatic servo driven pressure - pressure generated by compressing water in a still state. This range includes equipment that is used in internal pressure fatigue tests of pressure vessels and piping.



Sugino has been harnessing the power of water for more than half a century.

Servo Pressure 500


Hydrostatic processing at a pressure of up to 500 MPa


The Servo Pressure 500 provides hydrostatic pressure processing of up to 500 MPa. The unit is capable of clean and high-precision processing since it does not use any hydraulics. Can be used with AC 100 V. The operating location need not be fixed since the unit can be connected to any typical power outlet.

Servo Pressure 800


Hydrostatic processing at a pressure of up to 800 MPa


The Servo Pressure 800 provides hydrostatic pressure processing of up to 800 MPa. The unit is capable of clean and high-precision processing since it does not use any hydraulics. Both this unit, and the 500 can work with volumes up to 200 ml.




Principle

Sugino Hydrostatic Servo Pressure Diagram

Features


  • Compact and easy to use
  • Movable: units are compact and lightweight
  • Highly repeatable, reproducible settings
  • The units are driven by our servo motor allowing the setting pressure and pressure increase speed to be freely adjusted, resulting in high reproducibility tests

Pressurization test equipment designed to meet challenging specifications, to facilitate easy research and development of various ultra-high pressure technologies.

Sugino Servo Pressure 500
Servo Pressure 500
Sugino Servo Pressure 800
Servo Pressure 800

Pressure

500 MPa

800 MPa

Inner Dimensions of the Vessel

φ50 × 100 mm (200 ml)

φ50 × 100 (200 ml)

Temperature Control

Room temperature - 80℃

None / 0-80°C (option)

Dimensions (W x D x H)

900 × 700 × 1,005 mm

1,050 × 700 × 1,300 mm

Weight

300 kg

800 kg

Power Supply

AC 120 V 1.0 kVA

AC 200 V 3-phase 2.6 kVA

Potential Applications



Equipment in this category is ideally suited to facilitate easy research and development of various ultra-high pressure technologies.

  • Ceramic molding (molded power inductor)
  • Lithium Ion (Li-ion) battery materials
  • All solid state batteries (oxide-based materials)
  • Regenerative medicine (cartilage, true skin)
  • Pharmaceutical drug development
  • Food processing / food sterilization
  • Pressure test for nozzles
  • Powder metallurgy

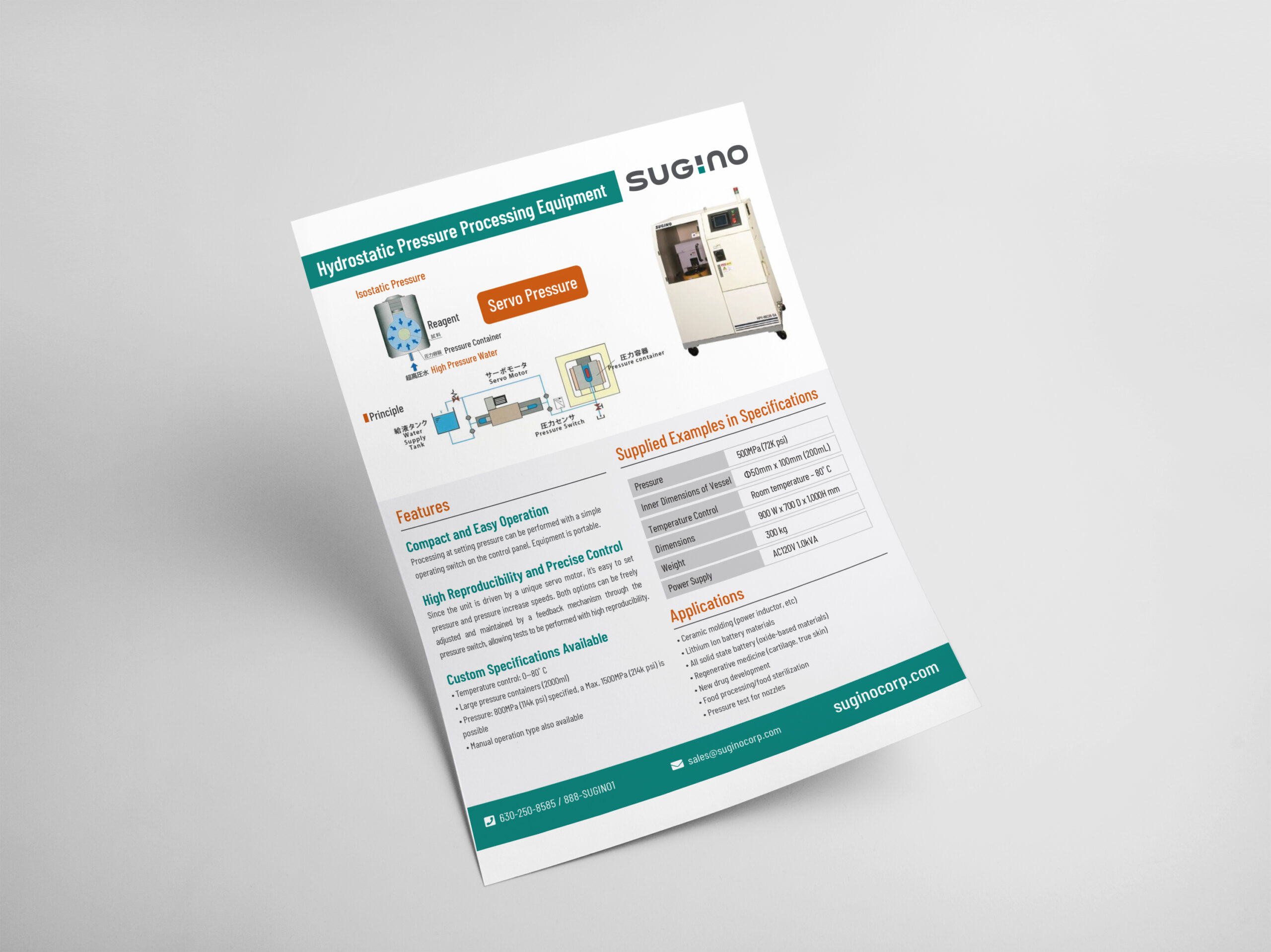

Sugino Hydrostatic Pressure Flyer Brochure PDF
