Star Burst™


Super fine particles, minimal contamination.

Star Burst™ is a wet-type pulverizing - or wet jet milling - device to disperse, emulsify, pulverize, and reform surfaces of raw materials by obliquely colliding the particles pressurized up to 245 MPa at the relative velocity of Mach 4 .

Star Burst™


Super fine particles, minimal contamination.

Star Burst™ is a wet-type pulverizing - or wet jet milling - device to disperse, emulsify, pulverize, and reform surfaces of raw materials by obliquely colliding the particles pressurized up to 245 MPa at the relative velocity of Mach 4 .

Top Features

Minimal Contamination

Star Burst does not use any grinding media, resulting in a minimum amount of contamination.

Scalability

From R&D projects to full production, you can scale up easily with common settings across all models.

Shorter Processing Time

Star Burst boasts a shorter processing time than other available technologies, meaning you can get more done, faster.

The solution for super fine particles.

The "Star Burst" is a wet-type pulverizing - or wet jet milling - device to disperse, emulsify, pulverize, and reform surfaces of raw materials by obliquely colliding the particles pressurized up to 245 MPa at the relative velocity of Mach 4 .

Features

Minimum Contamination
Star Burst does not use any grinding media, resulting in a minimum amount of contamination.

Homogenized Particle Size
Uniform particle with narrow particle size distribution can be achieved by controlling the injection speed of raw material slurry.

High Pulverizing Capability
Nano-level pulverizing or dispersing is effectively achieved in a short period of time without short path of raw materials.

Various Applications
This device is capable of pulverizing raw material slurry with a viscosity of up to 5,000 MPas or up to 50 wt%. Slurry with hard particles is also applicable, by using our original sealing structure and nozzle made of single crystal diamonds.

Get the full details.

Sugino StarBurst Brochure Cover

Download Product Information

Download Now


Request a call or email.

Explore the Star Burst Lineup

All models offer the same minimal contamination, ease of maintenance, and scale-up flexibility.

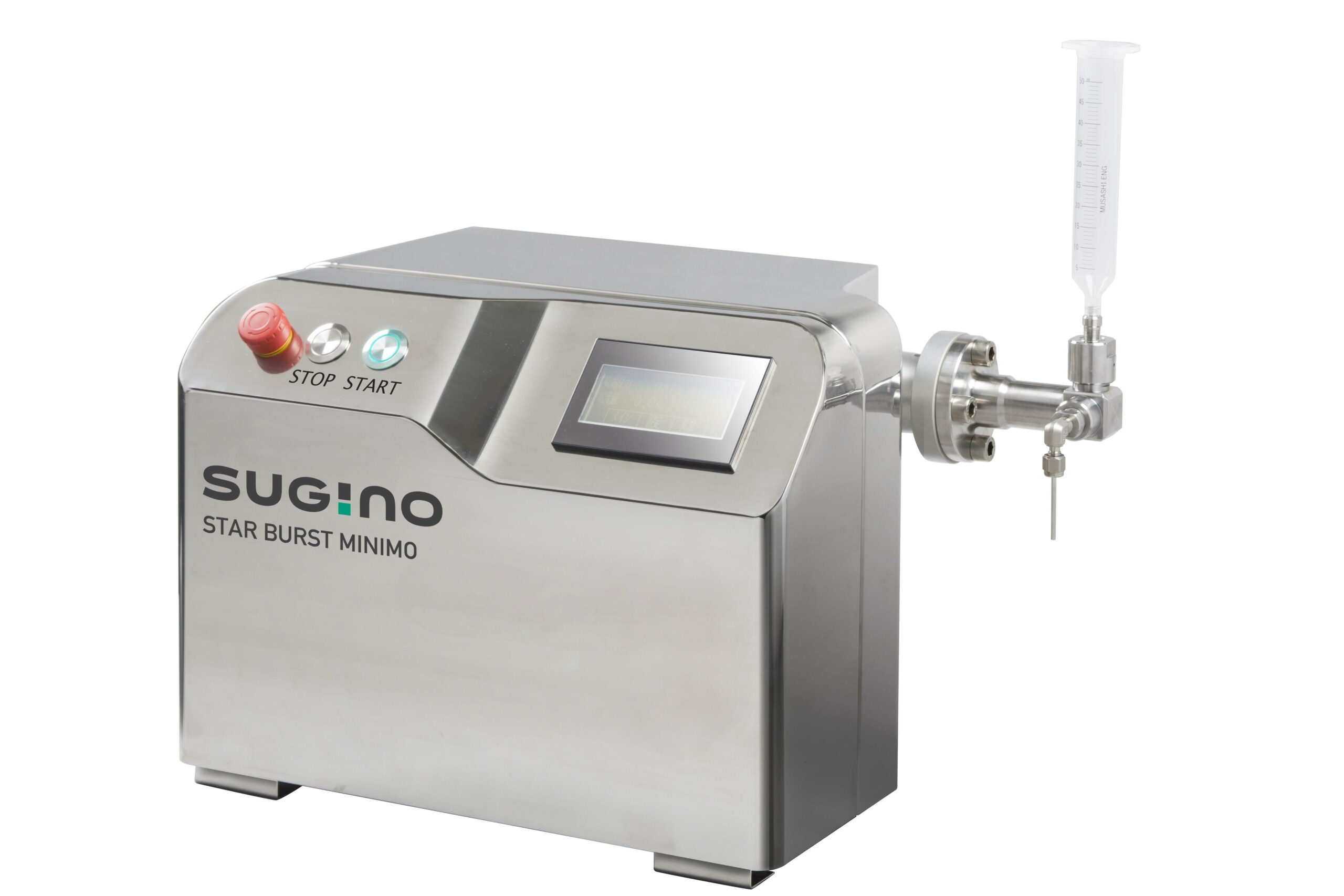

Star Burst Minimo
Sugino's Star Burst minimo benchtop lab model for processing raw materials

FOR R&D

Throughput: Max. 1-2 L/h

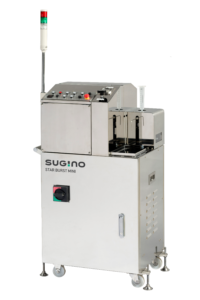

Star Burst Mini

Sugino StarBurst Mini Machine

FOR R&D

Throughput: Max. 6 L/h

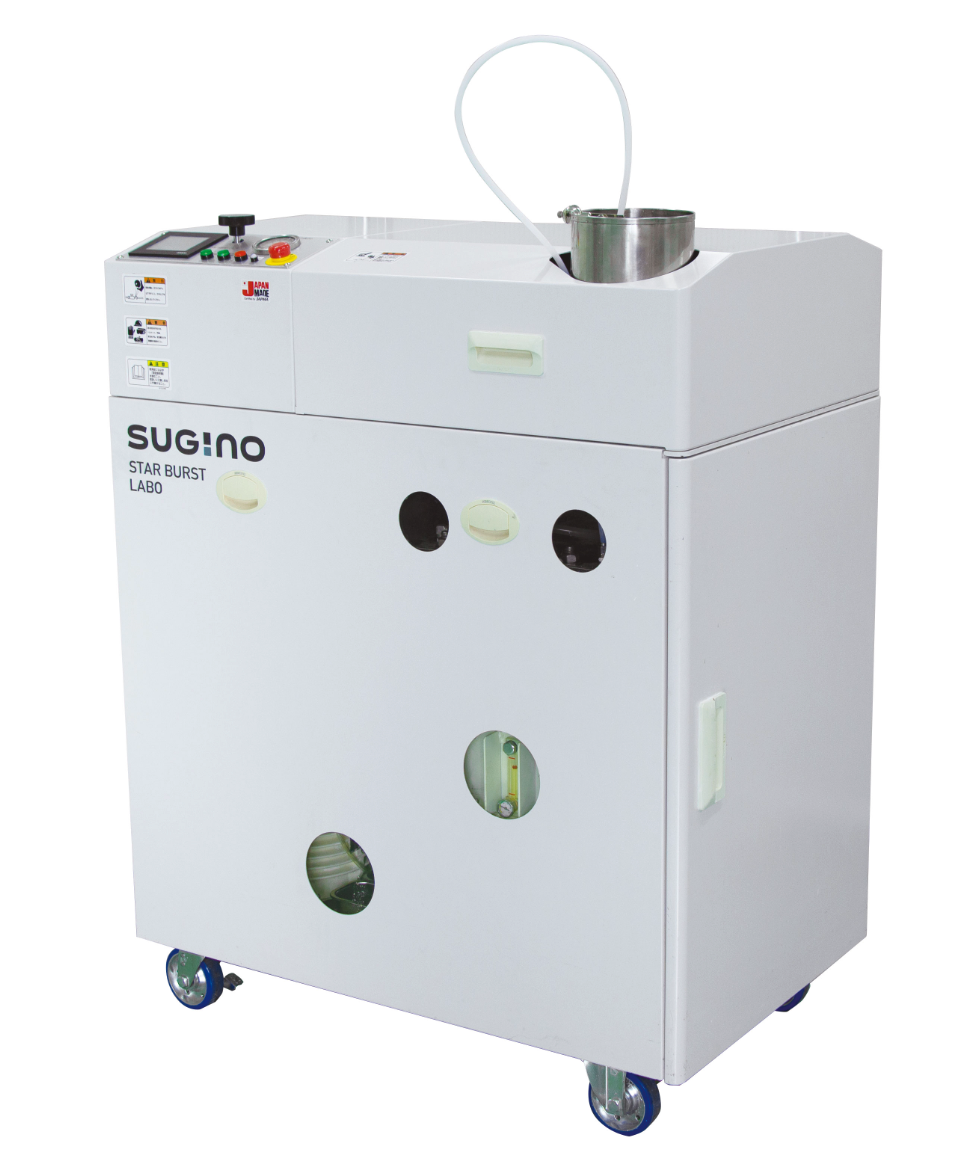

Star Burst Labo
Sugino Star Burst Labo wet jet milling device which is designed for dispersal, processing of materials, homogenization, and emulsification

FOR R&D

Throughput: Max. 23-50 L/h

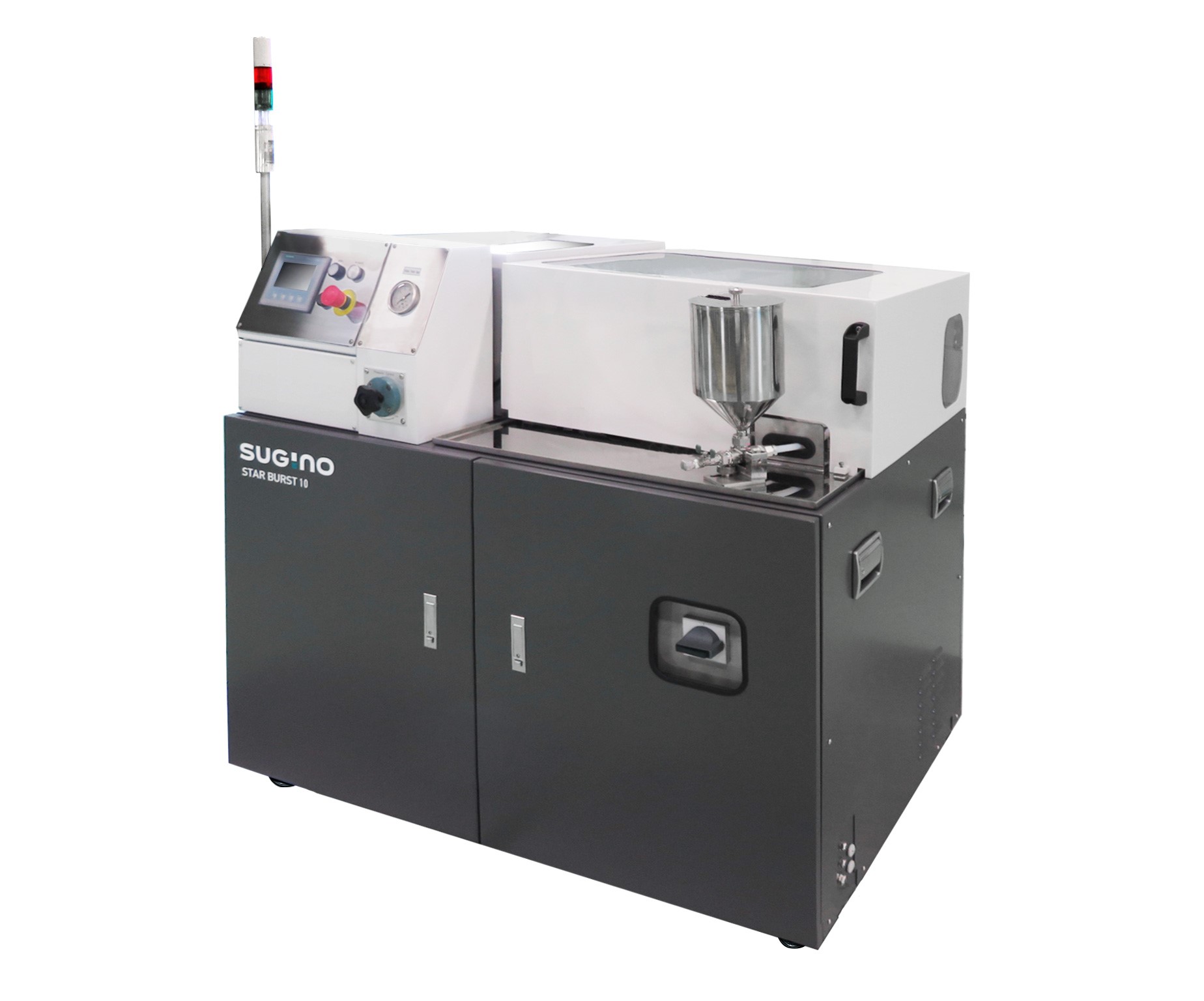

Star Burst 10

The Star Burst 10 wet jet milling device for research and development of processing materials
FOR SMALL PRODUCTION
Throughput: Max. 67 L/h

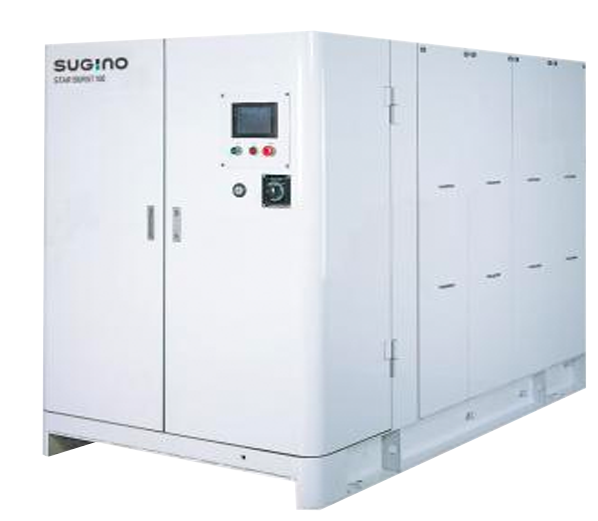

Star Burst 100
The Star Burst 100 for full scale production

FOR MASS PRODUCTION

Throughput: Max. 1,056 L/h

    Specifications

    Model

    Motor kW

    Max. Throughput L/hr

    Pressure MPa

    Diam. of Chamber Nozzle (mm)

    Explosion Proof Application

    External Dimensions (W x D x H mm)

    Weight kg

    Star Burst Minimo

    HJP-25001SE

    0.75

    1-2

    1 - 245
    φ0.06 to 0.15

    N/A

    504 x 280 x 300

    25

    Star Burst Mini

    HJP-25001

    2.2

    6

    100-245

    φ0.1

    N/A

    600 × 500 × 1,145

    180

    Star Burst Labo

    HJP-25005

    5.5

    32

    100 - 245

    φ0.1

    N/A

    925×590×1,169

    450

    HJP-17007

    50

    70-170

    φ0.13

    HJP-25003

    23

    100 - 245

    φ0.1

    HJP-17004

    36

    70 - 170

    φ0.13

    Star Burst 10

    HJP-25008

    7.5

    52

    100 - 245

    φ0.12

    Option

    1,215×826×1,258

    790

    HJP-17011

    67

    70 - 170

    φ0.15

    Star Burst 100

    HJP-25080

    HJP-16140

    HJP-10180

    75

    441

    727

    1,056

    100-245

    70-160

    50 - 100

    φ0.35

    φ0.50

    φ0.48
    (Dual chamber)

    Option

    1,330 × 2,500 × 1,900

    5,500

    Solves problems that commonly occur when homogenizing particles.


    Processing or homogenizing particles to nano-level size can improve their efficacy. Homogenization of particles refers to the process of reducing the average diameter of a material's particles uniformly.


    Dispersion

    Star Burst materials processing showing dispersion
    Loosen agglomerated particles into primary particles.

    Emulsification

    An illustration of the process of emulsification or emulsifying

    Reduce the size of droplets in liquid.

    Pulverization


    Crush the primary particles.

    Exfoliation

    Illustration of the process of exfoliation of materials through wet jet milling

    Peel off the layered material.

    Want to know more? Sample testing is available in our Chicago-area lab.
    Or, talk to an expert about Star Burst's full capabilities.

    Watch to learn how Star Burst works.

    See how Star Burst processes raw materials with minimal contamination. This video walks you through a diagram of the mechanism and gives you a look at what happens during the process.

    Explore the Star Burst Lineup

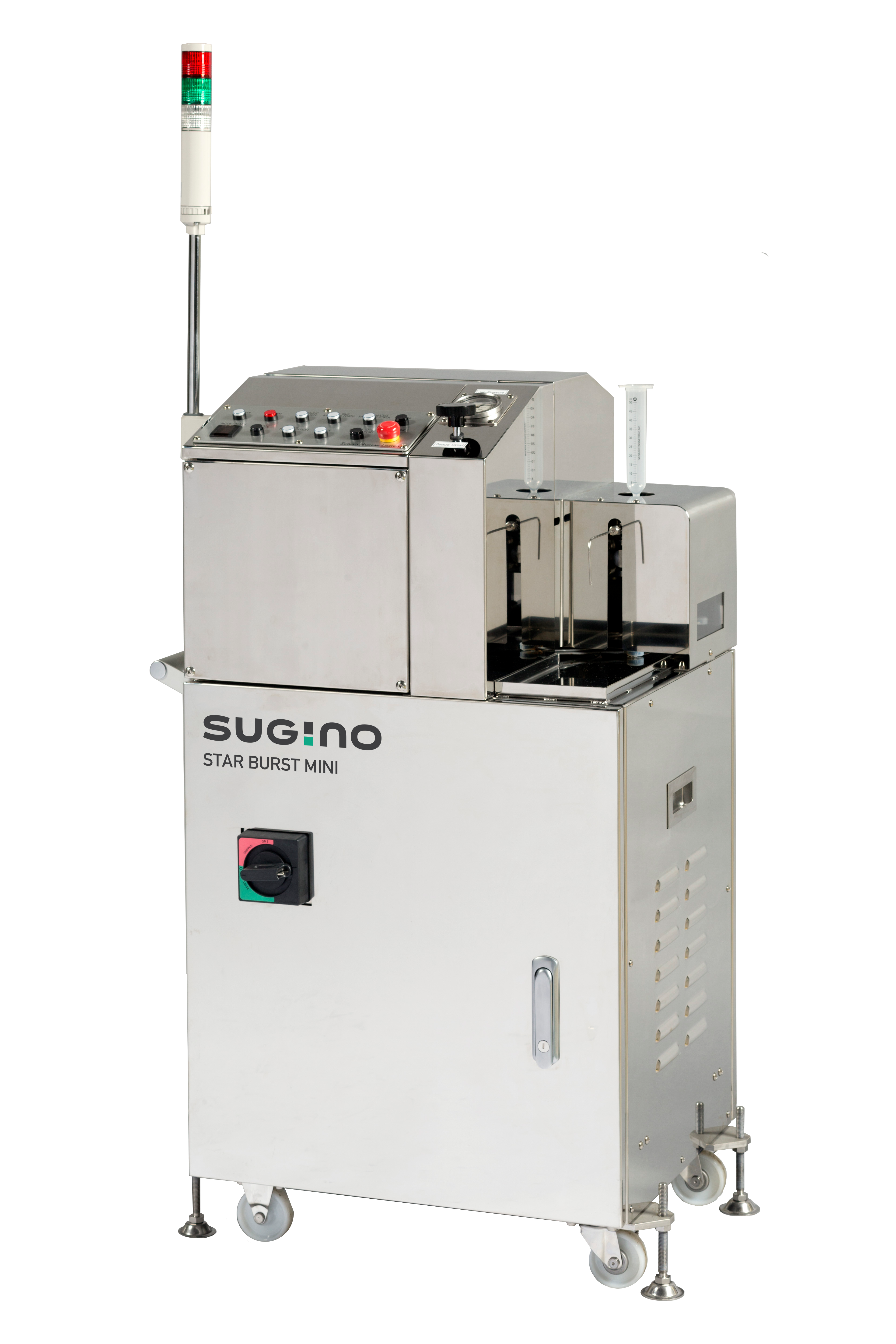

    Sugino Star Burst Mini Ideal for the R&D of super fine particles and emulsions. This model is suitable for research and development in the nano-field.

    Star Burst Mini is a wet-type micronizing device to disperse, emulsify, comminute and delaminate particles by collision into a ceramic ball using pressures of 245MPa (2.450 bar or 35,525 psi).

    Star Burst Mini  is the ideal partner in the development of cutting-edge, high value materials with extremely small material preparations with maximum yield.

    ■ Throughput: 5-6L/hr

     Dispersing, Milling, Emulsifying and Delaminating

    Key features

    • Ideal for valuable materials
      Required sample volume is minimum 20mL.
    • Minimum Contamination
      Star Burst does not use any grinding media and provides products with the minimum amount of contamination.
    • Sanitary design
      Star Burst Mini can be easily disassembled and washed.

    Atomization Mechanism

    メカニズム

    APPLICATIONS

    Electronics

    Battery materials, ceramics, metals, magnetic materials, capacitors, CMP slurry

    Cosmetics

    Emulsion, skin lotions, UV protection, perfumes

    Pharmaceuticals

    Injections, liposomes, cream, sterilizers


    Pigments

    Toner, color filters for liquid crystals, printing inks, paint

    Chemicals

    Resins, plastics, polymers, waxes, fats, and oils

    Food

    Aroma chemicals, calcium, antioxidants, food additives, functional beverages

    Example: Carbon Nanotube 0.1 wt%

    Carbon nanotube can be exfoliated by high shear force of high-speed water jetting.


    Number of passes: 20

    Before:
    17 μm
    Always precipitated

    Pressure: 200 MPa

    After:
    0.15 μm
    Always dispersed

    Sugino Starburst Brochure Cover
    You can get full details on Star Burst™ models and options with our product guide.
