SUGINO PUMPS

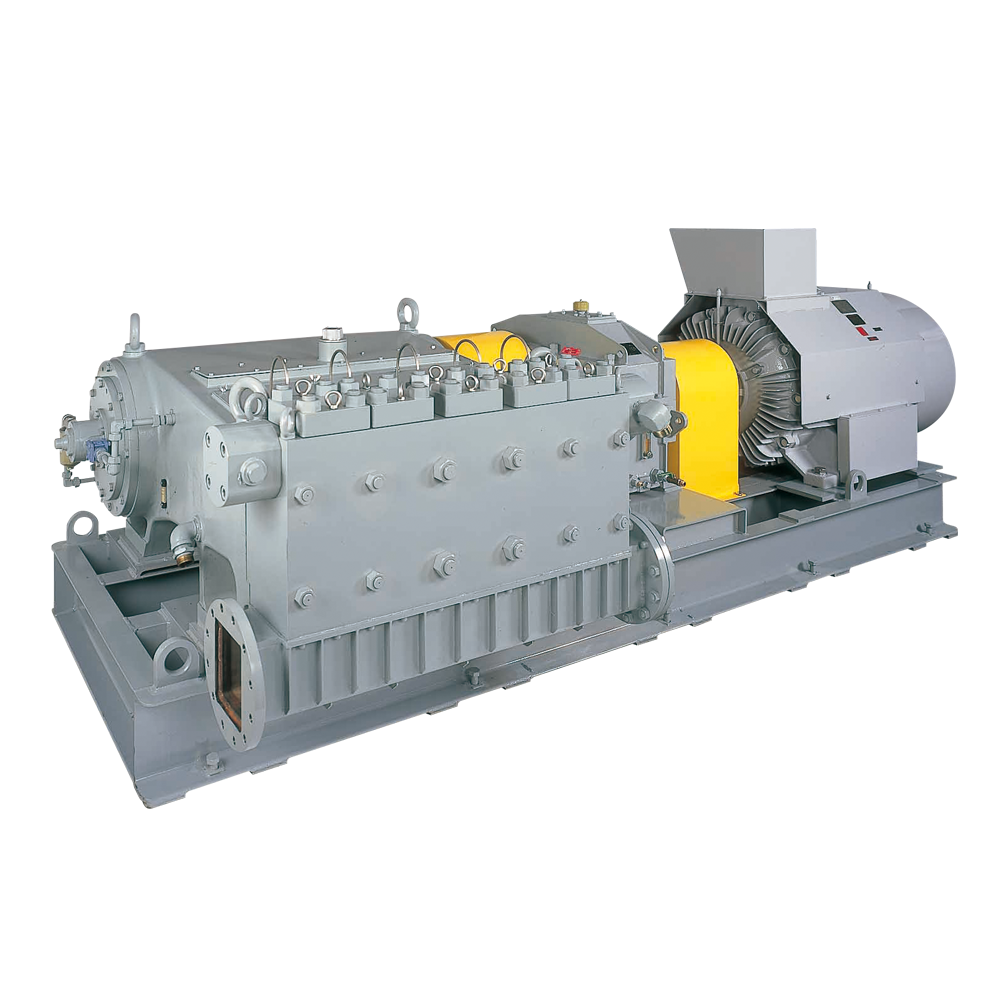

Motor Driven Pump Units

Sugino’s motor-driven pump units feature a plunger-type design, engineered for reliable performance in factory installations.

Built to withstand outdoor conditions, these dust-proof units are well-suited for a wide range of operating environments.

With a focus on long-term durability and continuous operation, we offer a broad lineup of models rated from 6 MPa to 200 MPa to meet diverse application needs.

Explore other pump options:
Sugino's motor driven high pressure pumps for industrial applications including cleaning, chipping, peeling, hydrodemolition, concrete resurfacing and preparation, infrastructure, road work

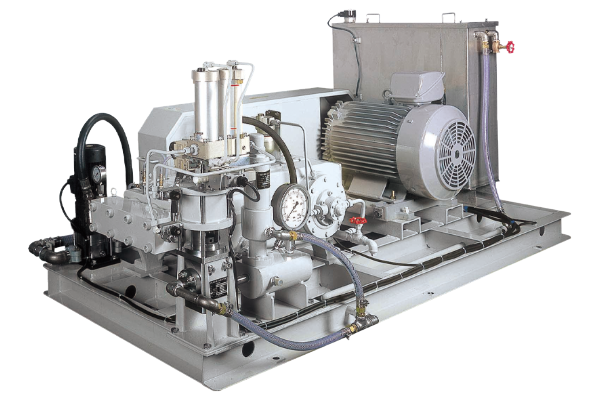

JCP075

Versatile mid-size pump units designed for a wide range of applications, including gun cleaning and equipment cleaning. Delivers a stable flow rate even under high-pressure conditions.

  • Max. Discharge Pressure: 200 MPa
  • Max. Flow Rate: 400 L/min
  • Driving Power: 75 kW

Applications: Temporary equipment cleaning, plant facility maintenance, and more.

Sugino's high pressure pumps for gun cleaning and equipment cleaning, plant facility maintenance

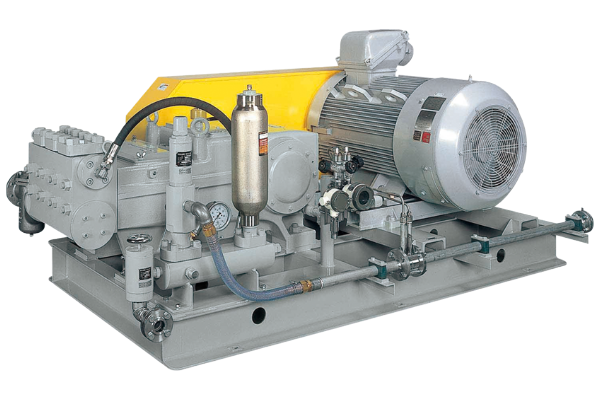

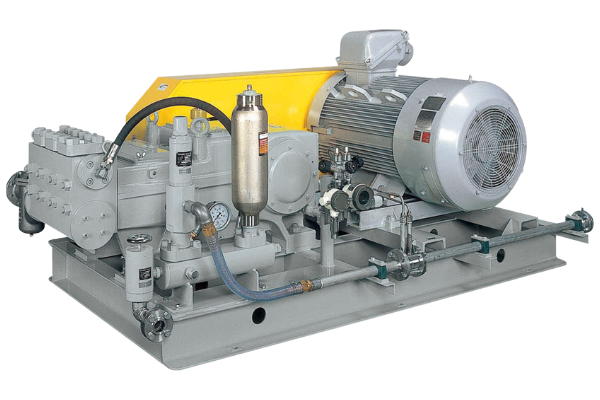

JCP170

Large flow rate pump units engineered for automated cleaning applications. Compatible with a wide range of cleaning systems to deliver powerful, efficient cleaning performance.

  • Max. Discharge Pressure: 200 MPa
  • Max. Flow Rate: 600 L/min
  • Driving Power: 170 kW

Applications: Plant facility cleaning, mid-size polymerization tank cleaning, etc.

Sugino high pressure pumps for midsize polymerization tank cleaning
Get expert help finding the right pump solution for your project.

Request a call or email, and a member of our Sugino team will get in touch to assist you.

Yes, I'd like Help

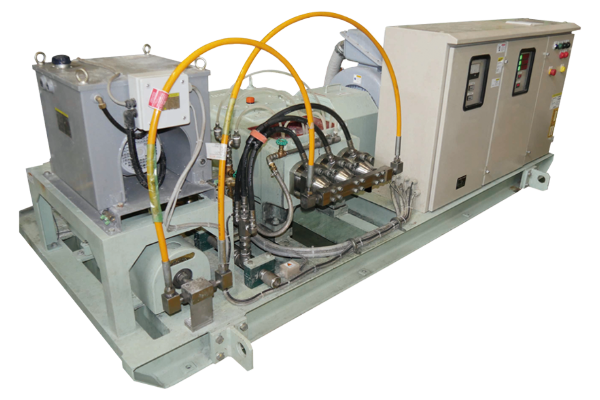

JPHP

Ultra-high-pressure pump units capable of pressurization up to 280 MPa. Their compact, direct-coupled motor design allows for installation in limited spaces.

  • Max. Discharge Pressure : 280MPa
  • Max. Flow Rate : 130L/min
  • Driving Power : 160kW

Applications : Ultrahigh-pressure cleaning, peeling, chipping, etc.



Sugino's high pressure pumps for ultra-high-pressure cleaning, peeling, chipping up to 280 MPa

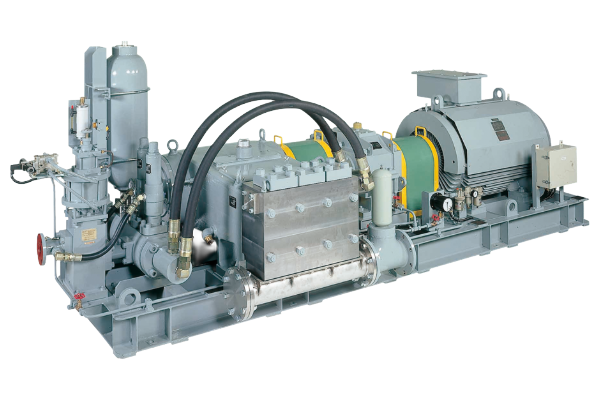

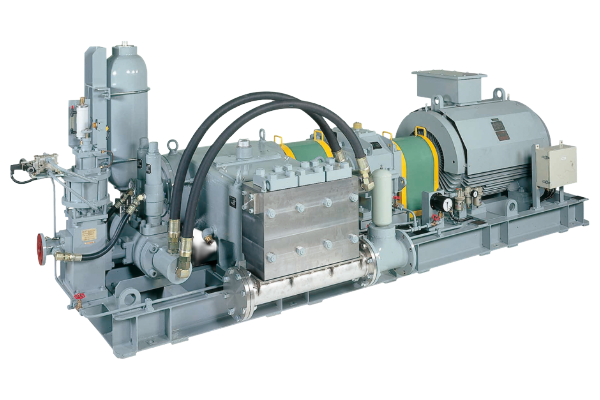

JCP300

Heavy-duty triplex plunger pump units designed for high-volume output and continuous operation. Ideal for automated cleaning of large polymerization tanks and billet descaling applications.

  • Max. Discharge Pressure : 200MPa
  • Max. Flow Rate : 1300L/min
  • Driving Power : 300kW

Applications : Large-size polymerization tank cleaning, descaling, etc.



Sugino's high pressure pumps for large-size polymerization tank cleaning, descaling, and billet descaling applications

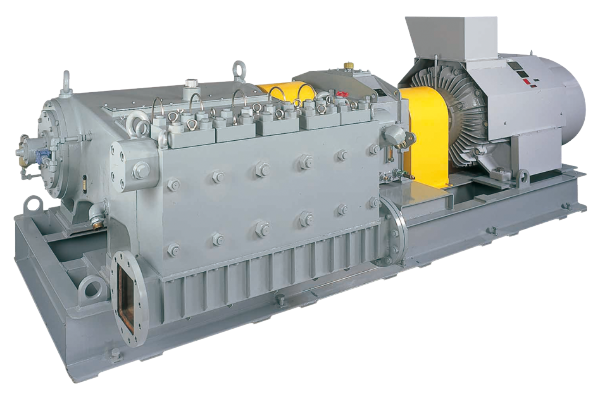

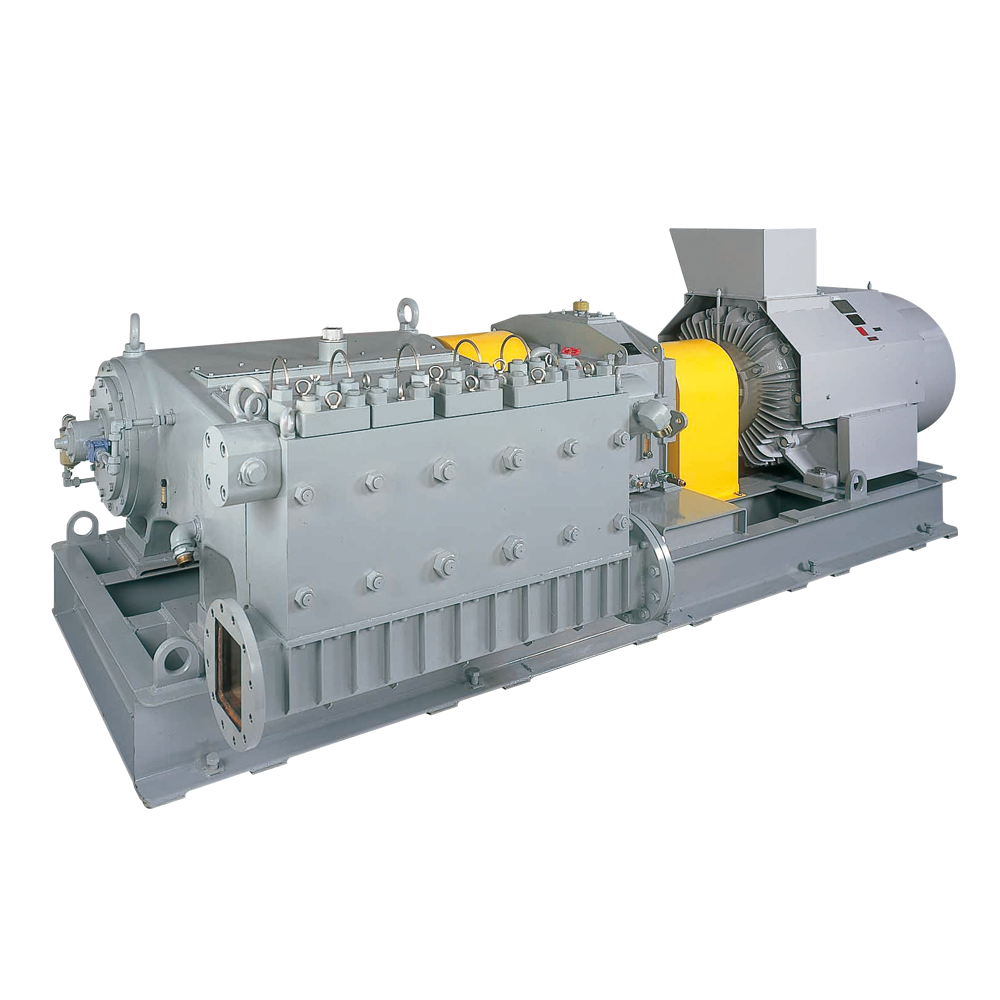

JCP500

High-capacity five-plunger pump units engineered for demanding industrial applications, such as bloom descaling, jet needling, and water atomization processes.

  • Max. Discharge Pressure : 200MPa
  • Max. Flow Rate : 2000L/min
  • Driving Power : 600kW

Applications : Descaling, water atomization,etc.

Sugino's high capacity high pressure pump for industrial applications like bloom descaling, jet needling, and water atomization

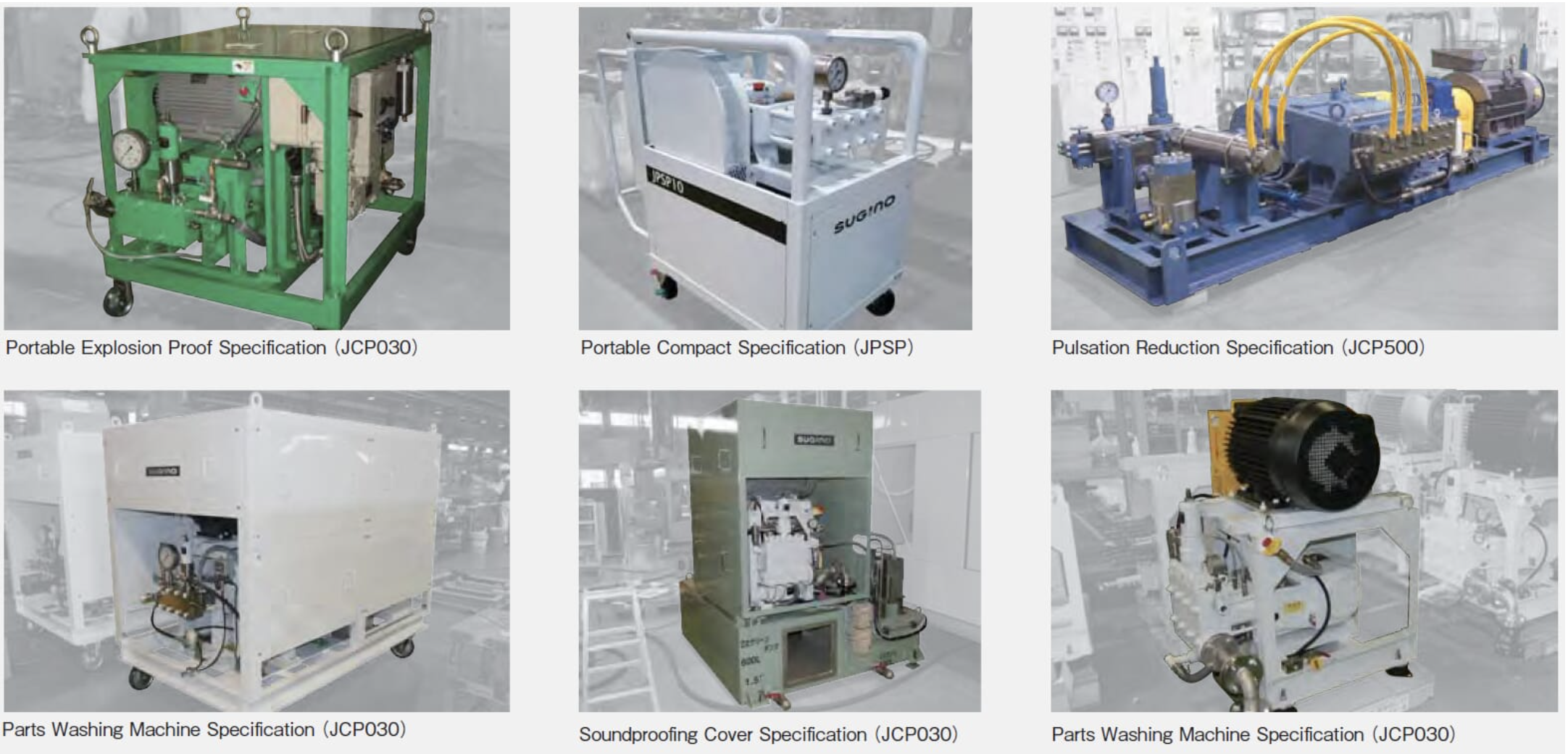

Various customizations available

We also offer customization options to suit your needs, such as portable carts, indoor and outdoor use, and soundproof covers.

Sugino high pressure pumps can be customized for portability, parts washing, soundproofing, and more
