HI-ROTARY GUN

Ultra-high-pressure water jet cleaning and peeling gun with a rotating nozzle




The Hi-Rotary Gun is a water jet gun that sprays ultra-high-pressure water with a rotating nozzle head at high speed, for efficient cleaning and peeling.

We recommend pairing it with our Safety Selector, for enhanced safety during operation and easy spray / stop control.

Placeholder Image

Multi-Nozzle Head and Spray Patterns

Multiple water nozzles are integrated into the head, creating distinctive spray patterns as illustrated in the diagrams below.

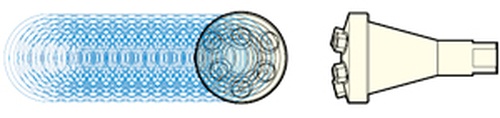

MNH-2506-15C

Multi-head nozzle for the Sugino Hi-Rotary high pressure water jet gun
Features six nozzles arranged evenly along a single circumference. Ideal for peeling coatings and paint films.

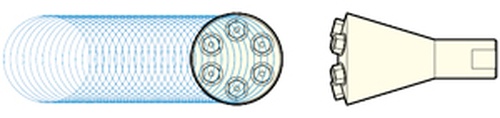

MNH-2506CH

A multi-head nozzle for the Sugino Hi-Rotary High Pressure Water Jet sprayer
Features six nozzles positioned at varying circumferences, producing a uniformly treated surface. Best suited for concrete roughening and base preparation.

Application Examples


  • Chipping and removal for building exteriors, deteriorated concrete, and paved roads
  • Roughening of stone and concrete
  • Removal of paint, linings, and coatings
  • Preparation for coating primers and rust removal
  • Elimination of various types of scale and surface deposits

Watch it in Action

Specifications
Specs Table
Model # Pressure
MPa / PSI
Flow Rate
L/min / GPM
Rotational Speed
min⁻¹
Drive Air Connection Screw
Thread Nominal
Mass
kg / lbs
Supply Pressure
MPa
Consumption
L/min (ANR)
HRG-2520HTF 245 MPa / 35,534 PSI 20 l/min / 5.3 GPM Max. 2,000 Air Motor 0.4 500 3/4-16UNF 4.8 kg / 10.5 lbs
