JCC 104 4+1

Reach, deburr, and clean all six sides of your workpiece.

It's our most powerful deburring and cleaning solution yet. The 104 combines indexing 4+1 control and high-pressure water jet deburring to handle hard-to-reach places where burrs hide. With a newly developed hollow 2-axis tilting rotary table with an open bottom, all 6 surfaces can be free of chips and burrs, clean, and ready to go. All packed into an energy-efficient, streamlined solution.

Key Features
Explore the JCC 104 Hybrid

Take a look and click on the key features to learn how the Hybrid's powerful deburring and part cleaning can reduce time and labor in your process - while accessing all sides of your part.

*To view in full screen, please use the button at the bottom right of the screen.
Key Features

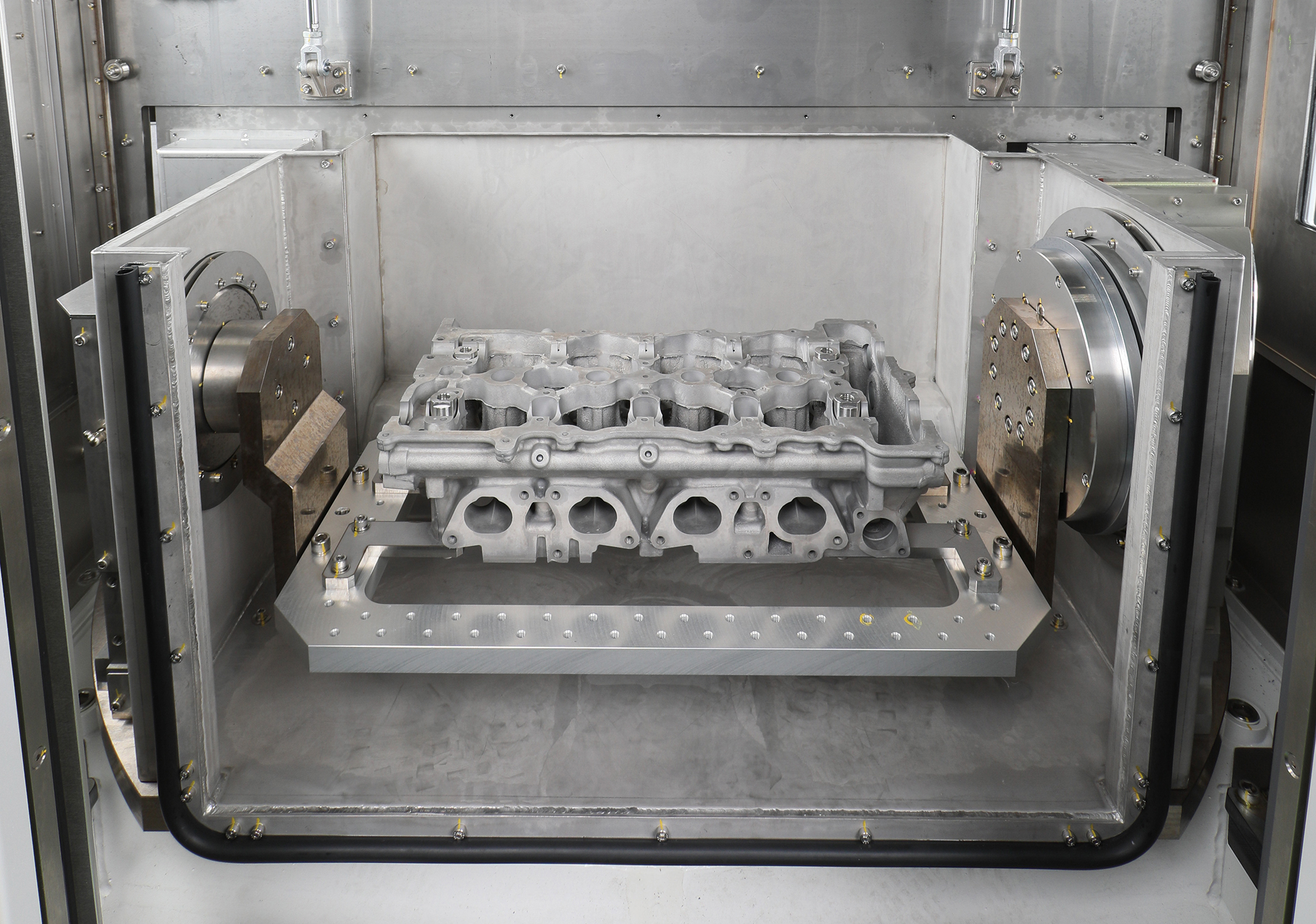

The rotary table in the Sugino JCC 104 Hybrid deburring and parts washing system allows access to all 6 sides of a part with indexing 3+2 axis

Access all surfaces of the workpiece.

Equipped with a newly developed hollow 2-axis tilting rotary table with an open bottom for deburring and cleaning all surfaces. The 5-axis indexing control allows deburring on all surfaces of the workpiece, including the mounting surface.

Deburr and clean with the power of high-pressure water.

High-pressure water of up to 50MPa can deburr areas where tools cannot reach, such as cross holes, deep holes, and stepped areas.
In addition, deburring with high-pressure water also cleans at the same time, allowing the processes to be consolidated.

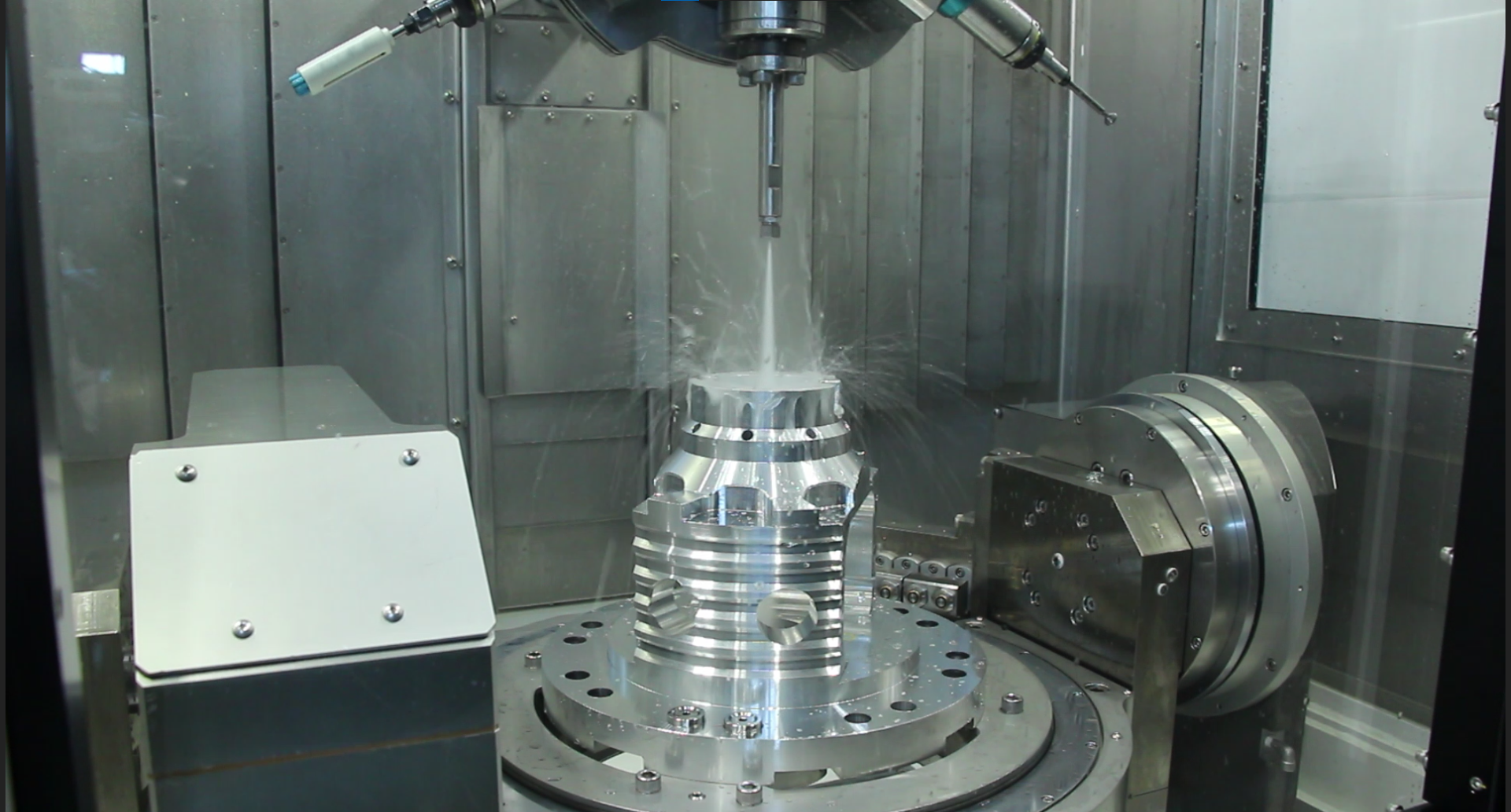

Sugino's powerful high pressure water jet deburring removes chips and burrs from blinid holes, tapped holes, and cross holes

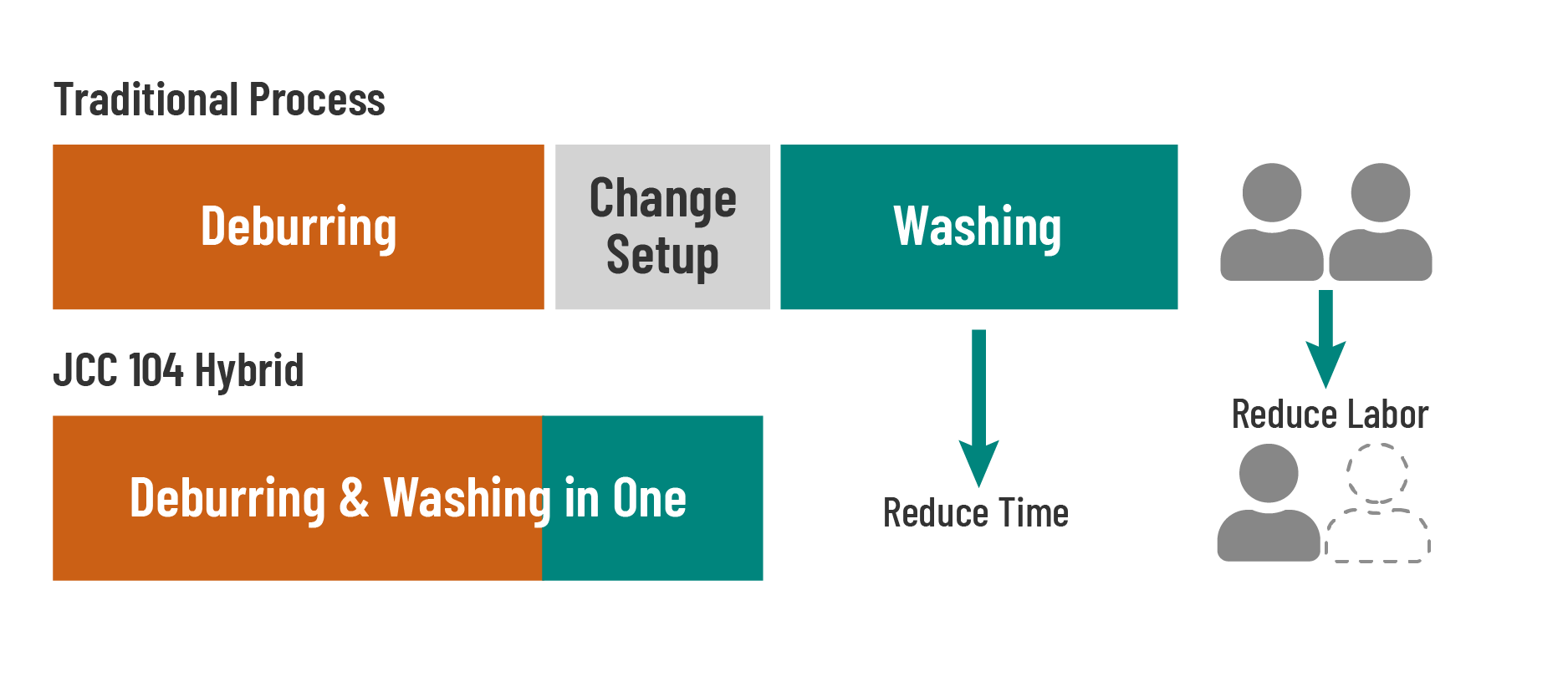

the JCC 104 Hybrid saves time and labor with combined washing and deburring process in one machine

Consolidates cleaning and deburring processes for improved productivity.

The deburring process is often done manually and requires a lot of time and cost. The 104 Hybrid can perform highly accurate deburring and cleaning all at once, contributing to automation and labor savings, and improving productivity.

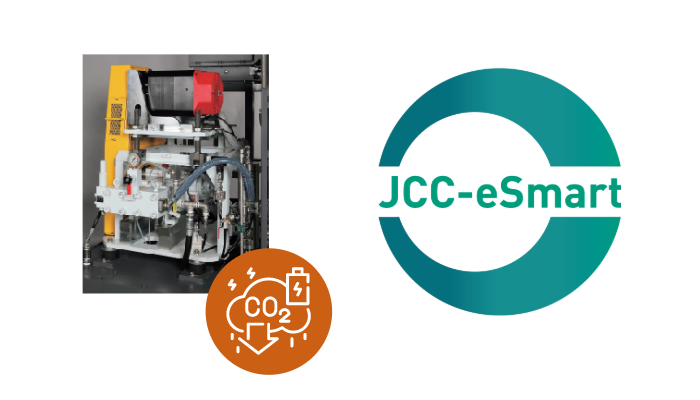

Equipped with the JCC-eSmart energy-saving package.

JCC-eSmart is standard on all JCC models. It optimizes the power of the high-pressure water generation pump (which uses the most power in a parts washer) and significantly reduces power consumption.


Easy to operate with CNC control.

Controlled by CNC, the JCC Hybrid can be operated using the familiar G code. Because it does not rely on the complicated instructions, special skills, or qualifications that robots require, anyone can use it.


Cleaning Pressure

Max. 50MPa

Flow Rate

Max. 29L/min


X axis: 750mm, Y axis: 500mm, Z axis: 500mm

Rapid Traverse Speed (X, Y, X axis)


Number of Tools


Control Device

FANUC 0i-MF Plus

External Dimensions (Equipment Body)

Width 1,600mm x Depth 2,700mm x Height 2,500mm

Machine Mass (Equipment Body)

4300 kg

Our robust parts testing process can show you exactly how JCC can benefit your production process.

We offer parts testing at our Wixom Technology Center. And our results report is second to none. To discuss your project or testing, get in touch - or request a call or email at your convenience.
