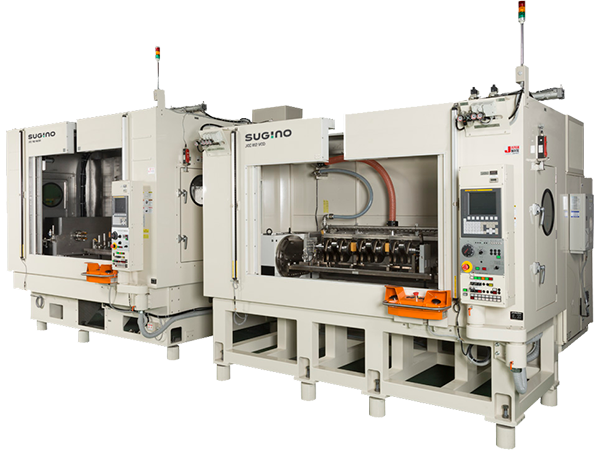

Flexible, High-Pressure Water CNC Deburring and Cleaning Machines
Whether you have challenging parts to wash, burrs to remove — or both — JCC systems are engineered to provide you with precision, high-pressure deburring and washing up to 245 MPa. Highly accurate (0.08 mm), repeatable, CNC-controlled results without a heat-affected zone (HAZ). The flexibility and modularity of these sytems make them ideal for a wide range of applications and parts.
Since the JCC’s inception in 1998, it has been highly regarded both in Japan and globally. To date, we have delivered more than 6,000 JCC machines in more than 30 countries around the world.
Our JCC units are backed by a global Service Team so they can continue to meet your performance requirements and ever-changing industry standards long after purchase.

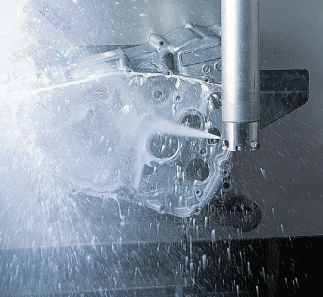

High-Pressure Targeted Washing and Deburring
Water is pressurized up to 245 MPa and injected by CNC control.
The impact force of the injection effectively removes burrs and chips - without relying on chemicals.

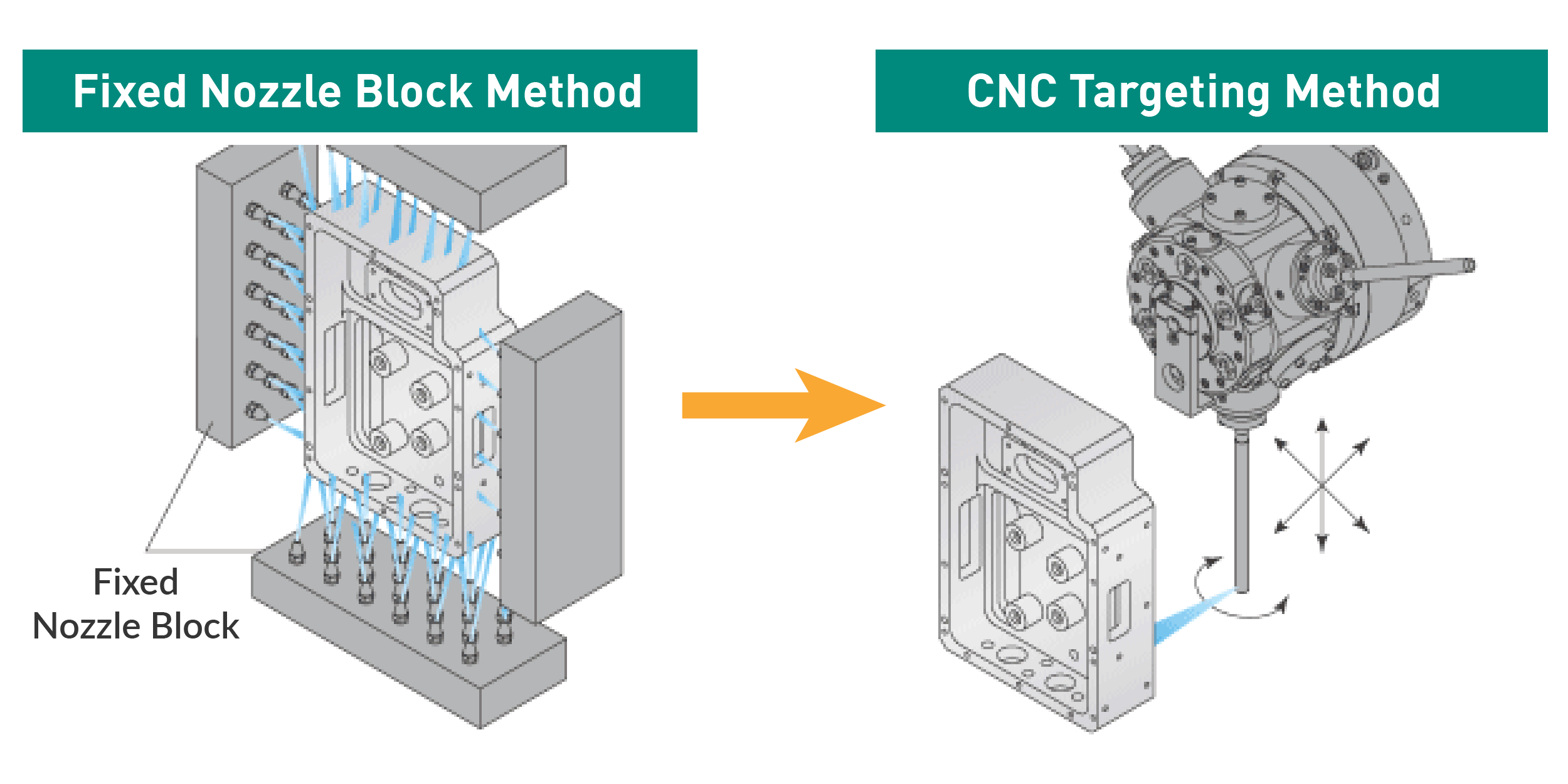

High-pressure / high-velocity water removes chips quickly and effectively for impactful cleaning quality. By combining the right nozzles with targeted positioning, Jet Clean Center systems save time, energy, and cost. As production needs change, cleaning conditions can also change via new CNC programming, allowing for quick response and adaptability.

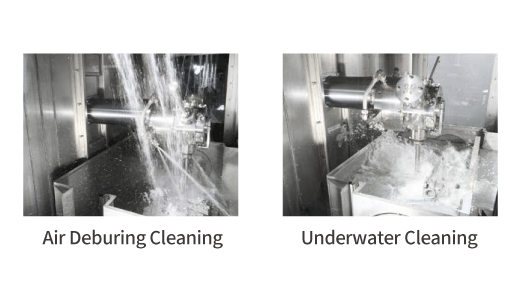

Submerged and Open Air Cleaning
High-pressure water jet deburring and cleaning is exceptionally good at removing chips and debris from hard-to-reach places within a workpiece. Our expertise in harnessing the power of water is why manufacturers trust us when they're working with complex parts.
With both submerged and open-air cleaning - often combined in one system - you get a synergistic effect, with high-pressure jets and cavitation creating a vortex that is especially powerful.

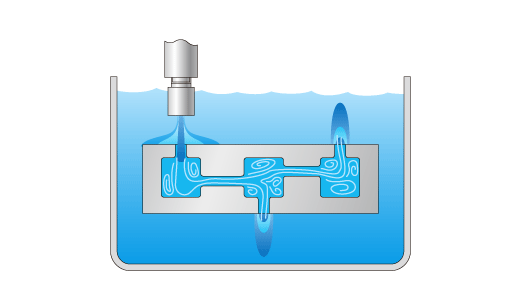

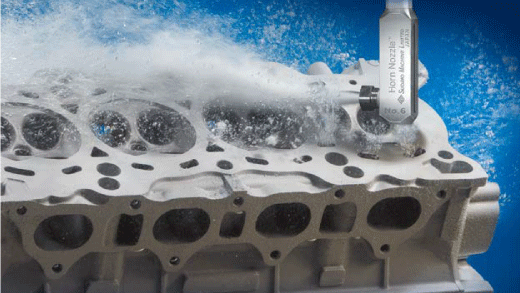

Features of underwater washing with U-Jet
When high-pressure water is jetted underwater, cavitation (fine bubbles) is generated. As these bubbles collapse, they generate an impact pressure of several GPa, and that power is harnessed for cleaning and removing residual chips from internal passageways within a part, even if the geometry is complex and challenging.

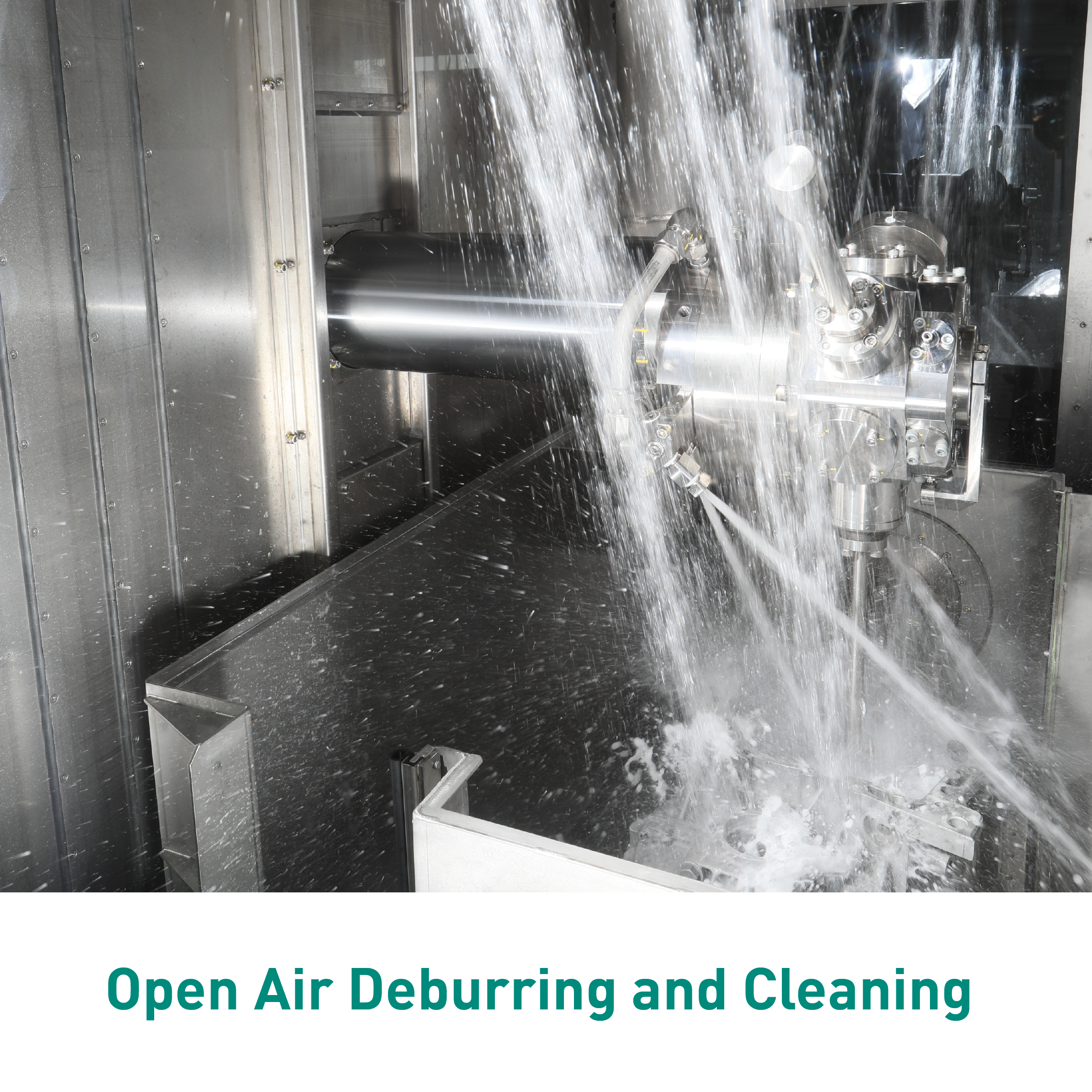

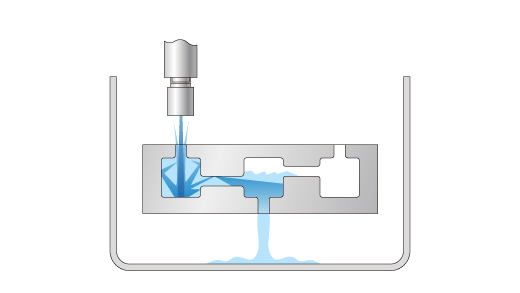

Open-Air Deburring and Washing

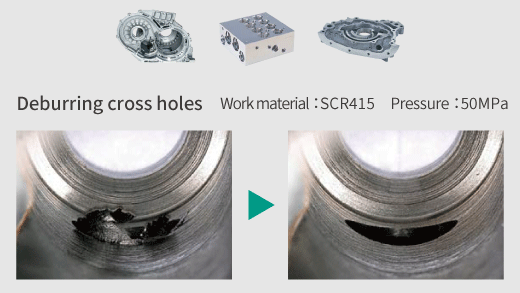

High cleaning effect in and around the area where high-pressure water collides. Ideal for parts with many taps, for deburring cross holes, and deep oil passage holes.
Examples: Transmission case, gearbox case

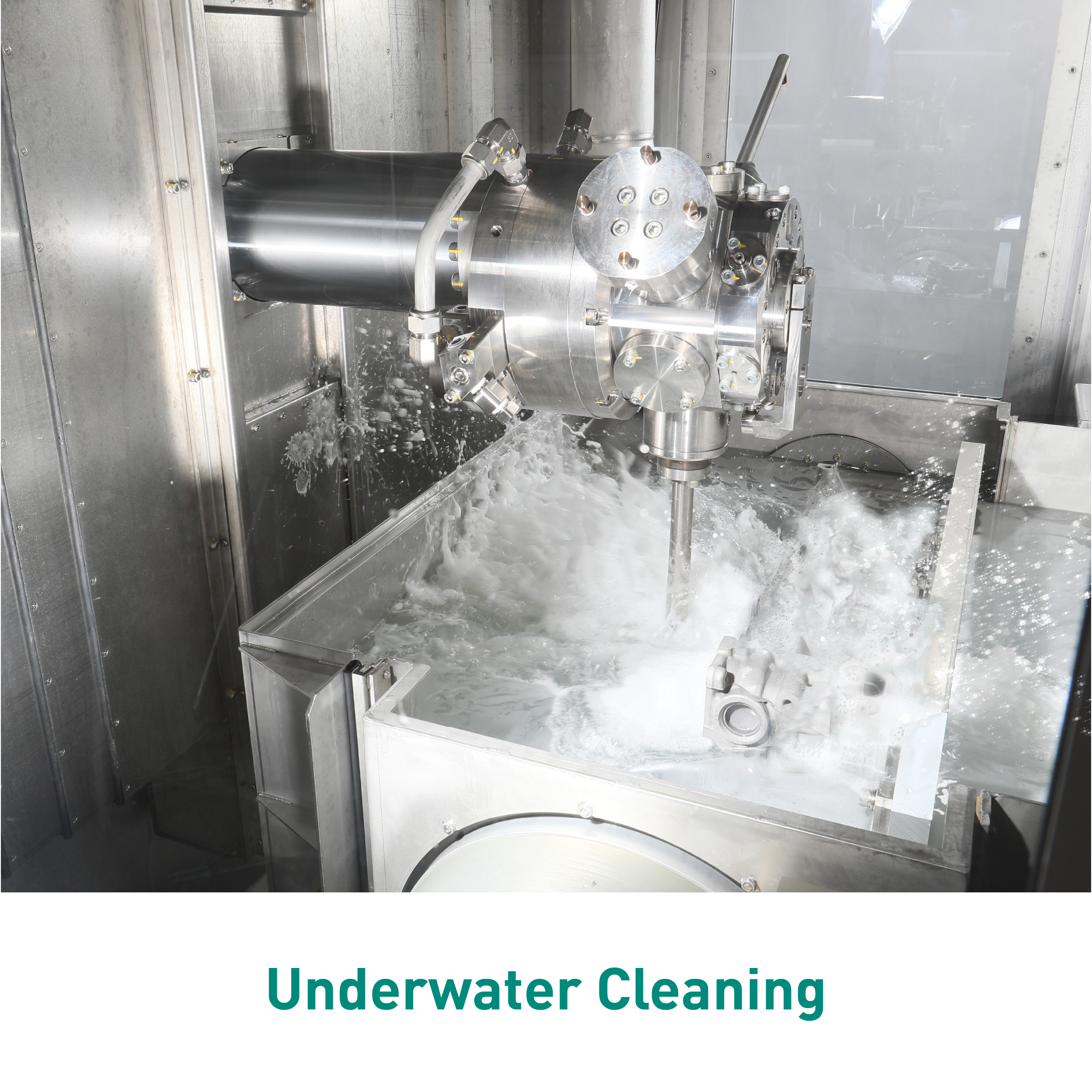

Submerged Washing

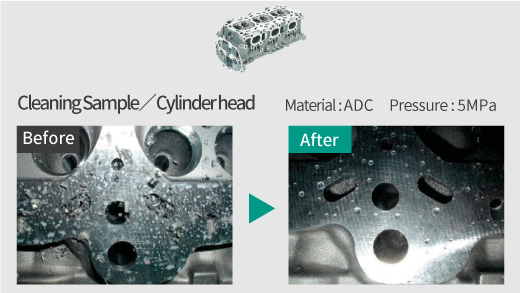

Examples: Construction machinery, hydraulic parts, cylinder heads / blocks
One solution that checks all the boxes.
Ease of Operation
Similar to a vertical machining center, minimal training is required and operators will be ready to run the machine shortly after installation.
CNC Reliability and Accuracy
With CNC control, 0.08 mm positioning accuracy contributes to highly efficient deburring and washing.
Widely Used
Thousands of installations since it's introduction in 1994.

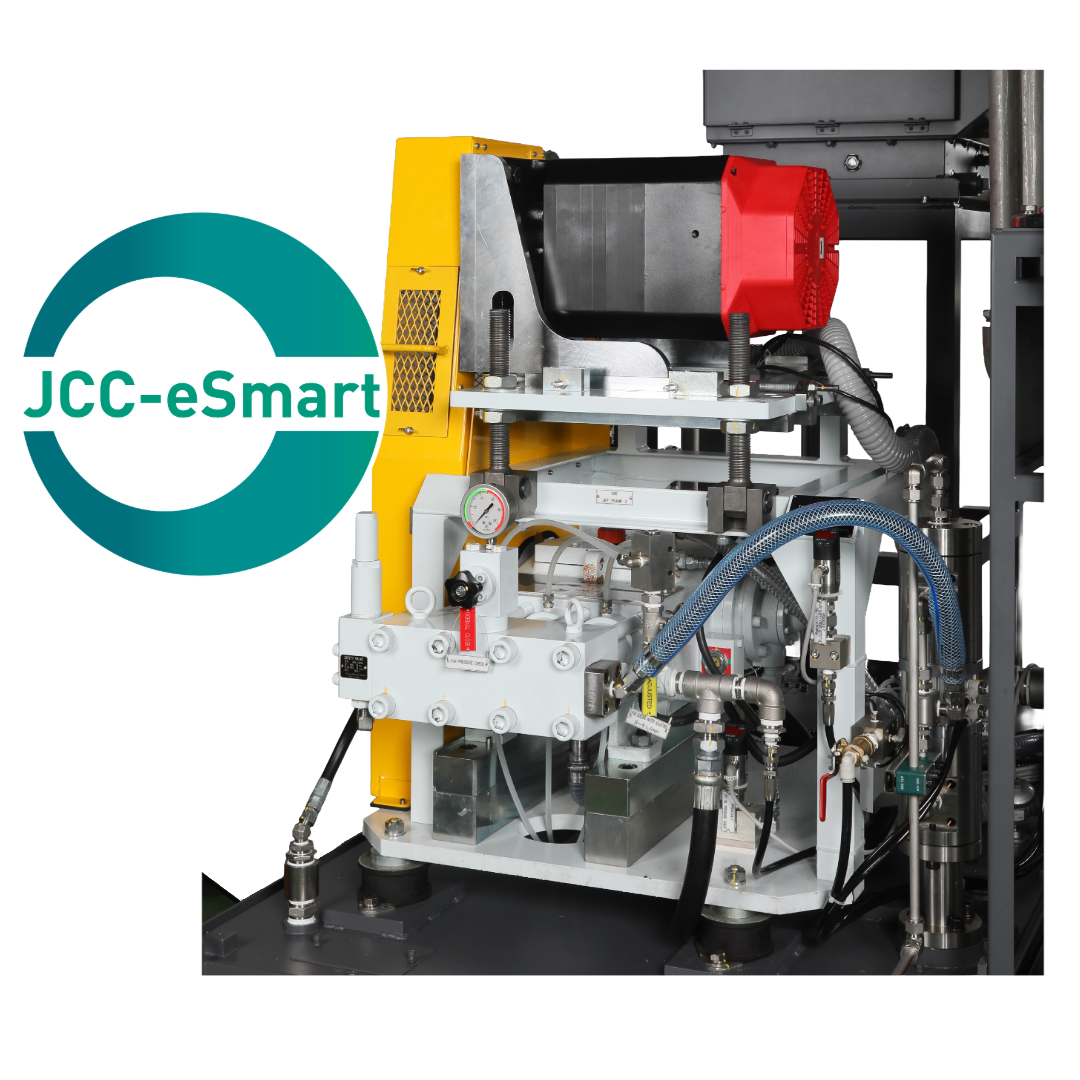

High Pressure Pumps with Automatic Pressure Correction
Optimizes pressure to help eliminate fluctuations which can cause defects.
Flexibility/Modularity
Retool costs can be drastically reduced.
Dependable Service
Backed by a global service and aftermarket team.
80 Years of Experience
JCC combines Sugino's 80 years of machining and waterjet experience.
Trusted Solution
Trusted by automotive OEMs, tier 1 and 2 suppliers, aerospace/aircraft primes and tiers, and a host of other industry-leading manufacturers.

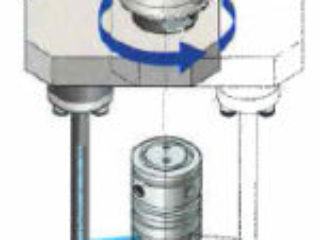

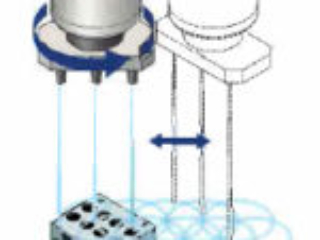

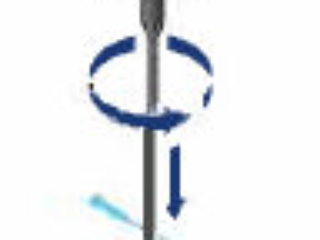

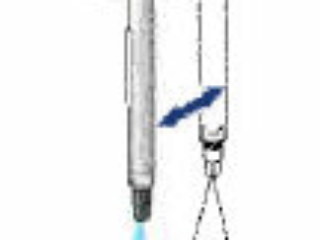

Spray Nozzle Tools

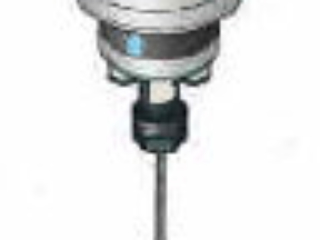

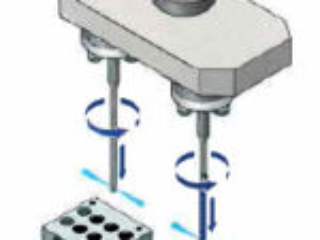

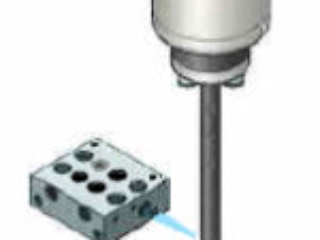

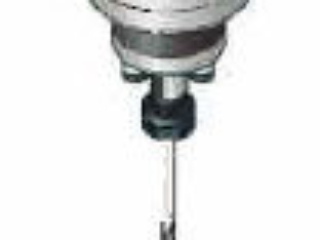

Can handle various workpieces — we offer a variety of washing nozzle attachments such as L type nozzle, twin nozzle, and deburring tools - up to 6 options on turret units.
Multiple Automation Solutions
Best modular type washing machine suitable for gantry loader, conveyer, and robot transfer.
Think You've Got Specs
We Can't Achieve?
We're engineering solutions that keep up with ever-changing specifications for your industry.

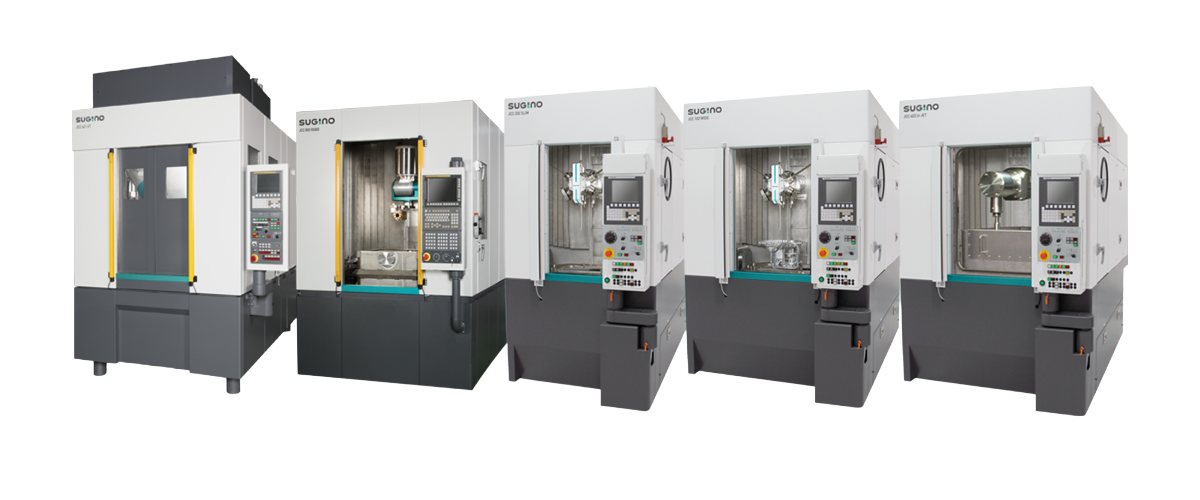

Explore JCC Models

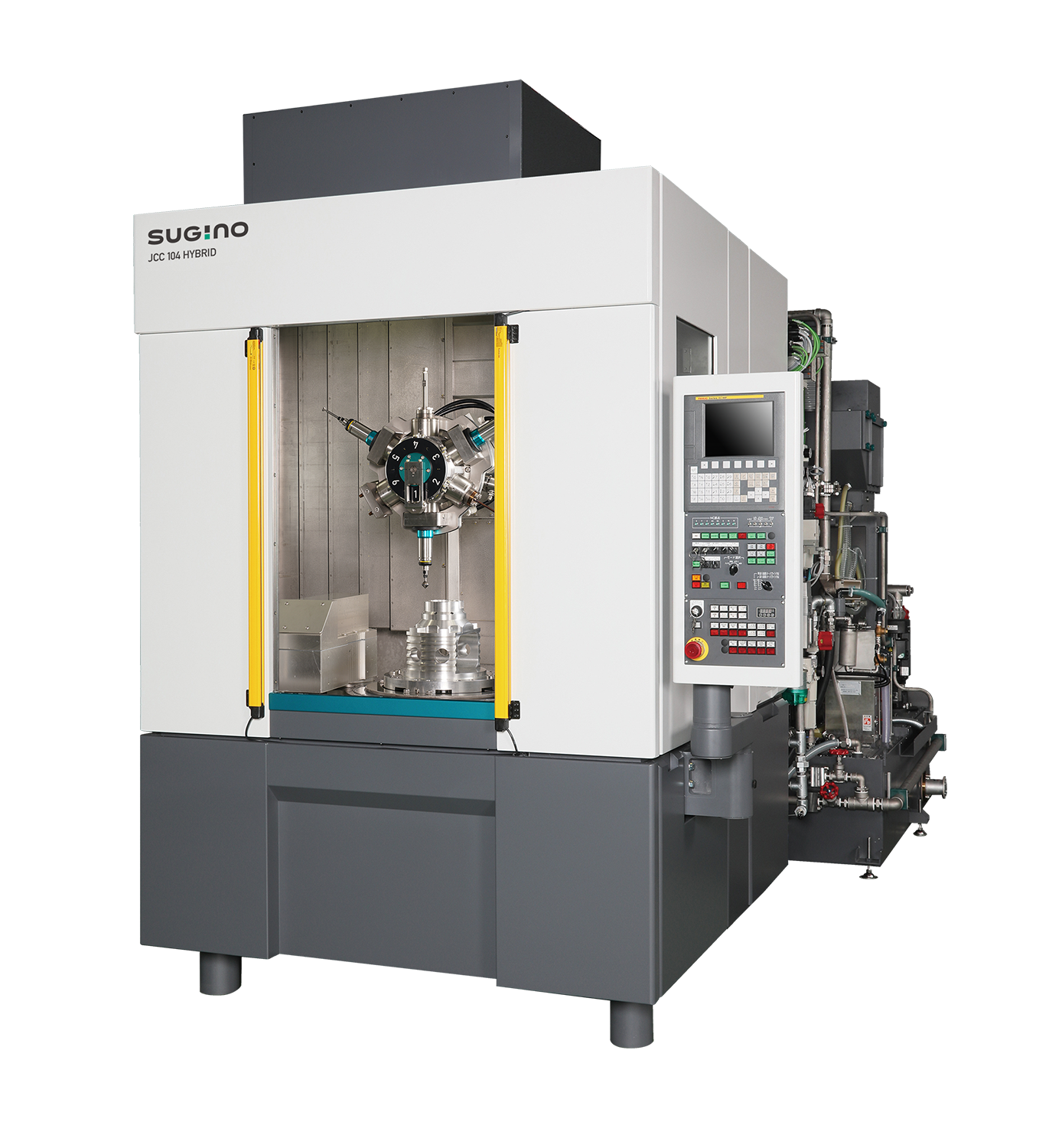

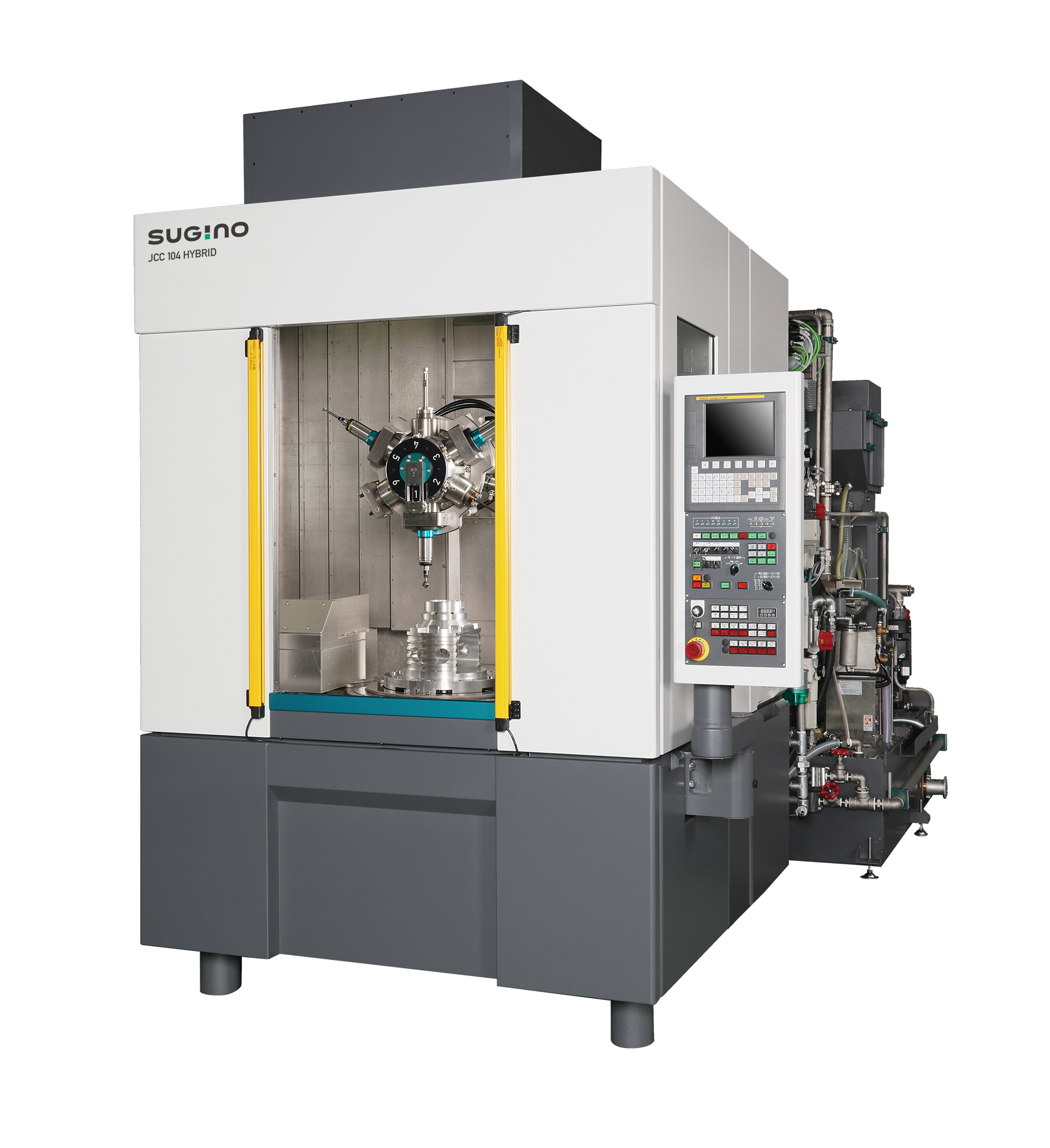

JCC 104 4+1

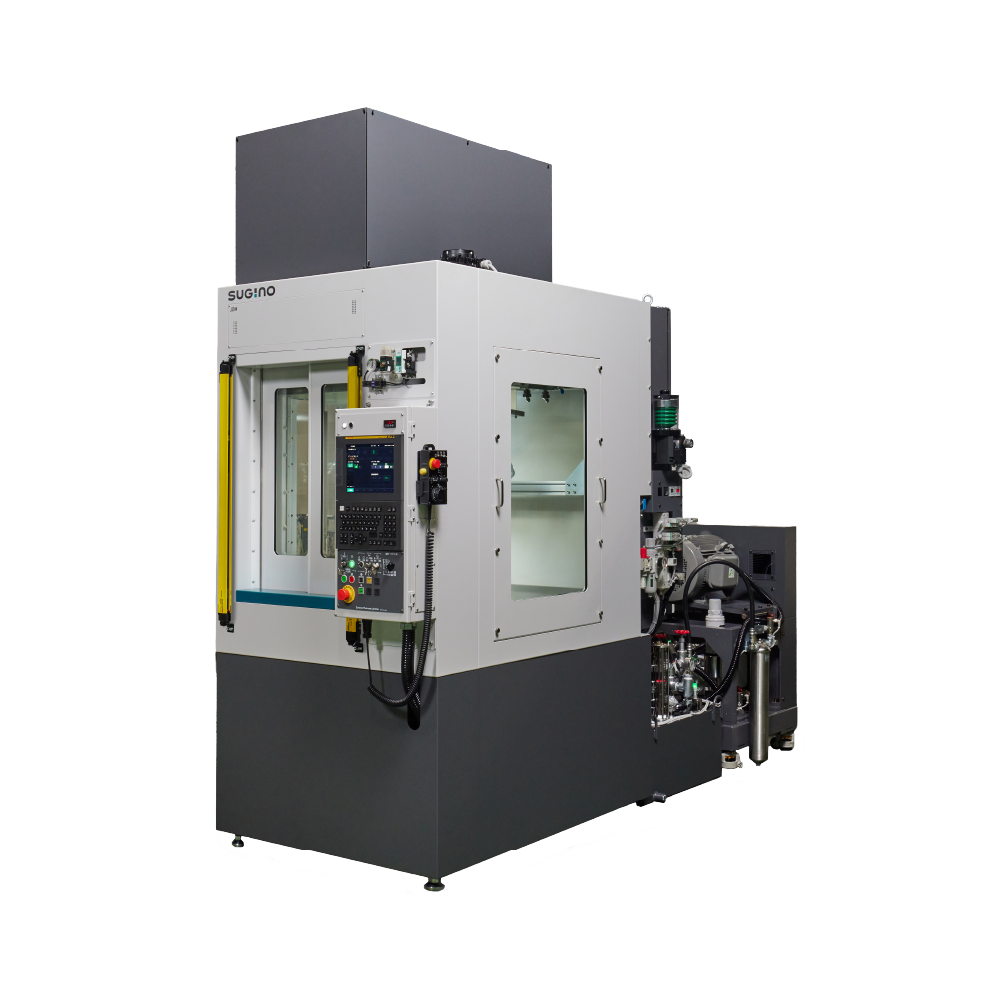

JET DEBURRING MACHINE (JDM)
The Jet Deburring Machine (JDM) delivers consistent, repeatable results at pressures up to 70 MPa (10,000 PSI)

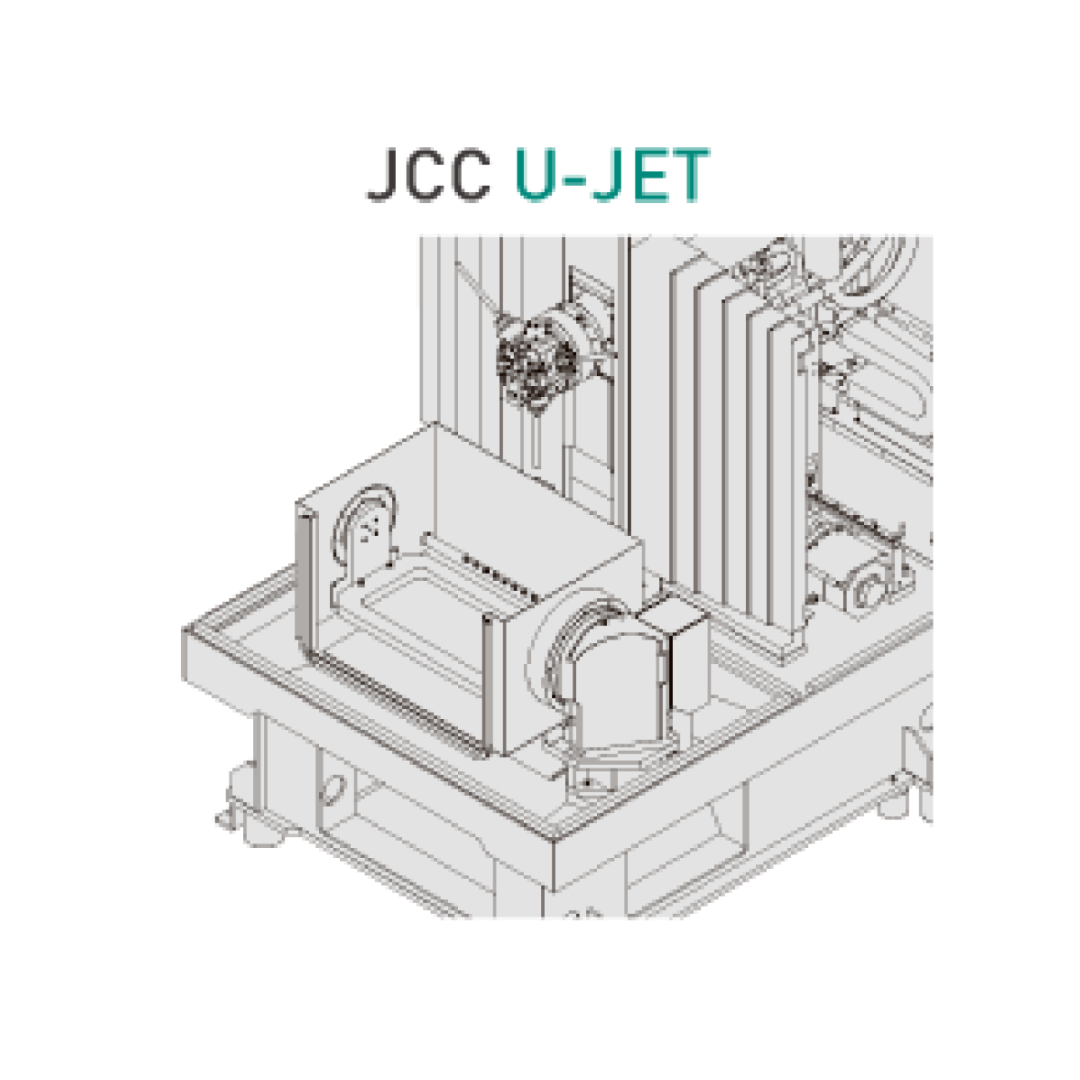

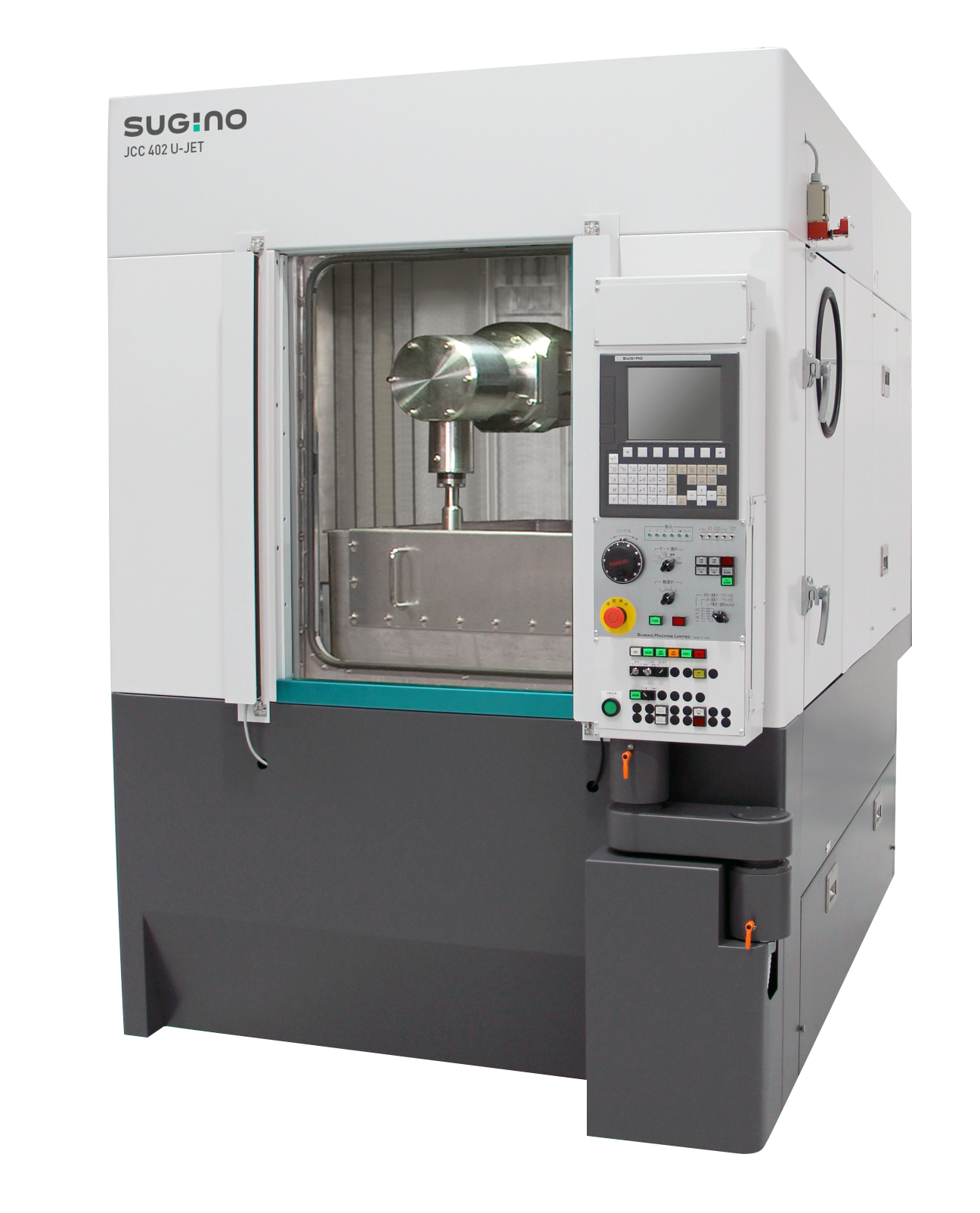

JCC™ U-Jet CNC Turret-Type Submerged Part Washing Machine

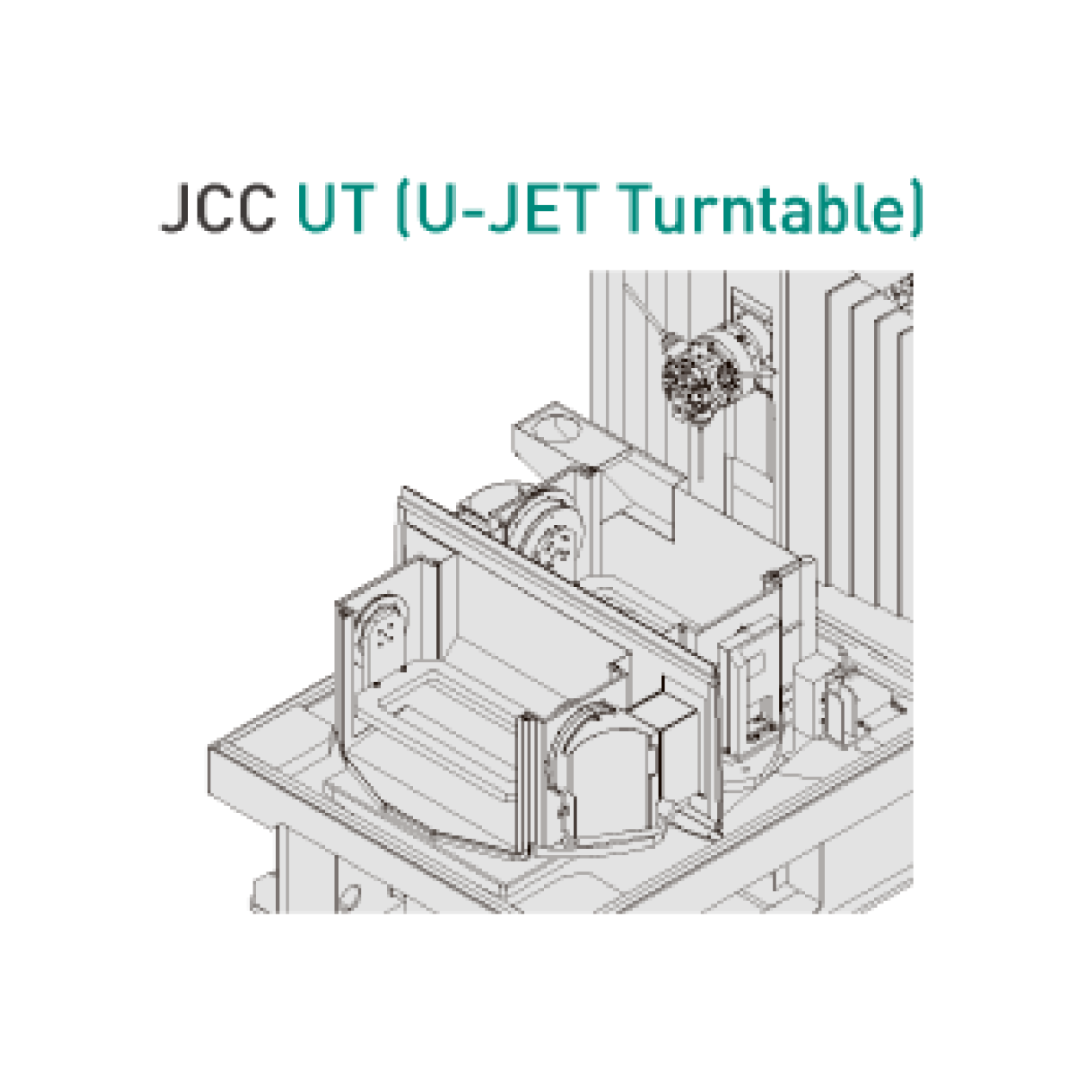

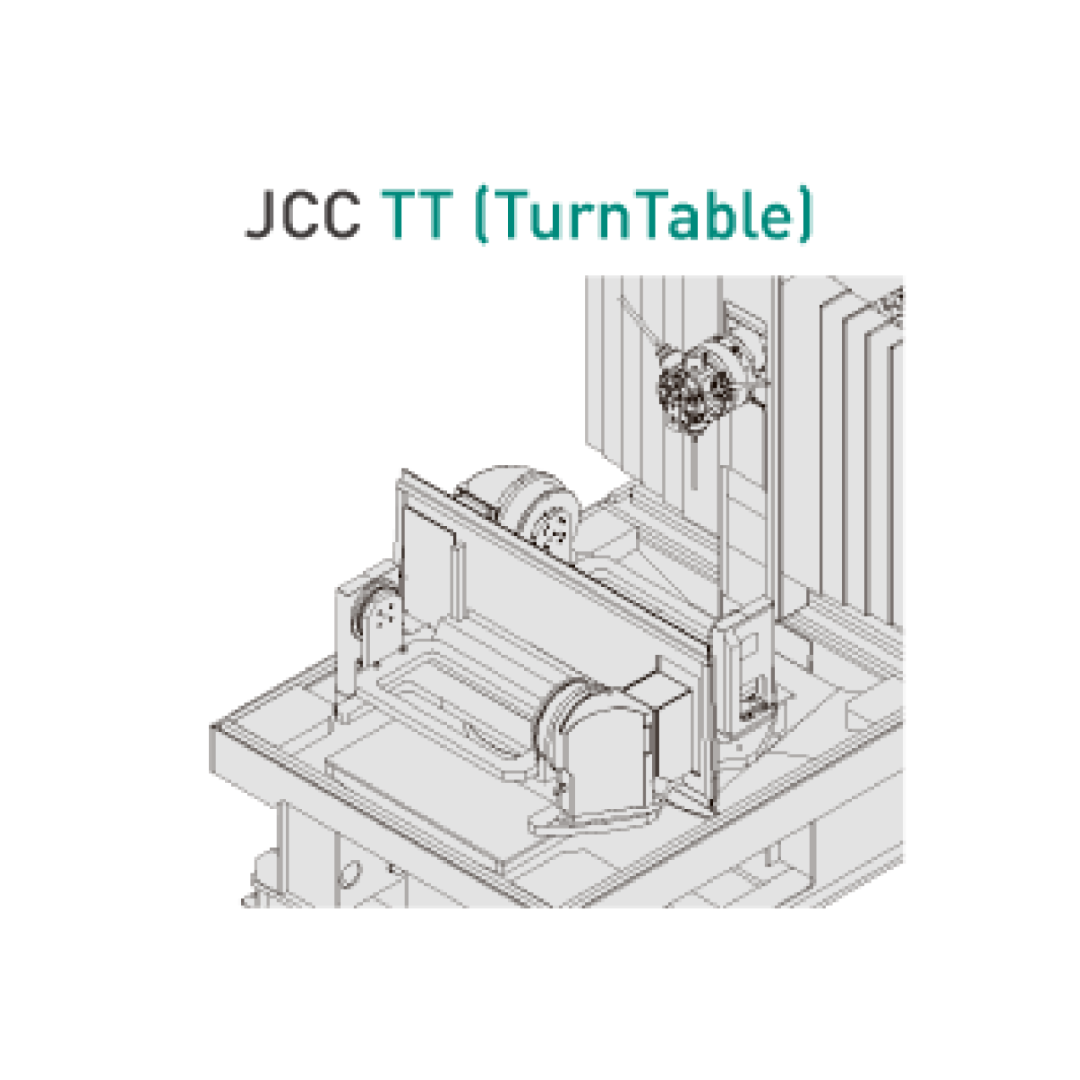

JCC 421 UTE U-JET TURNTABLE WITH INTEGRATED SUBMERGED CLEANING AND DEBURRING

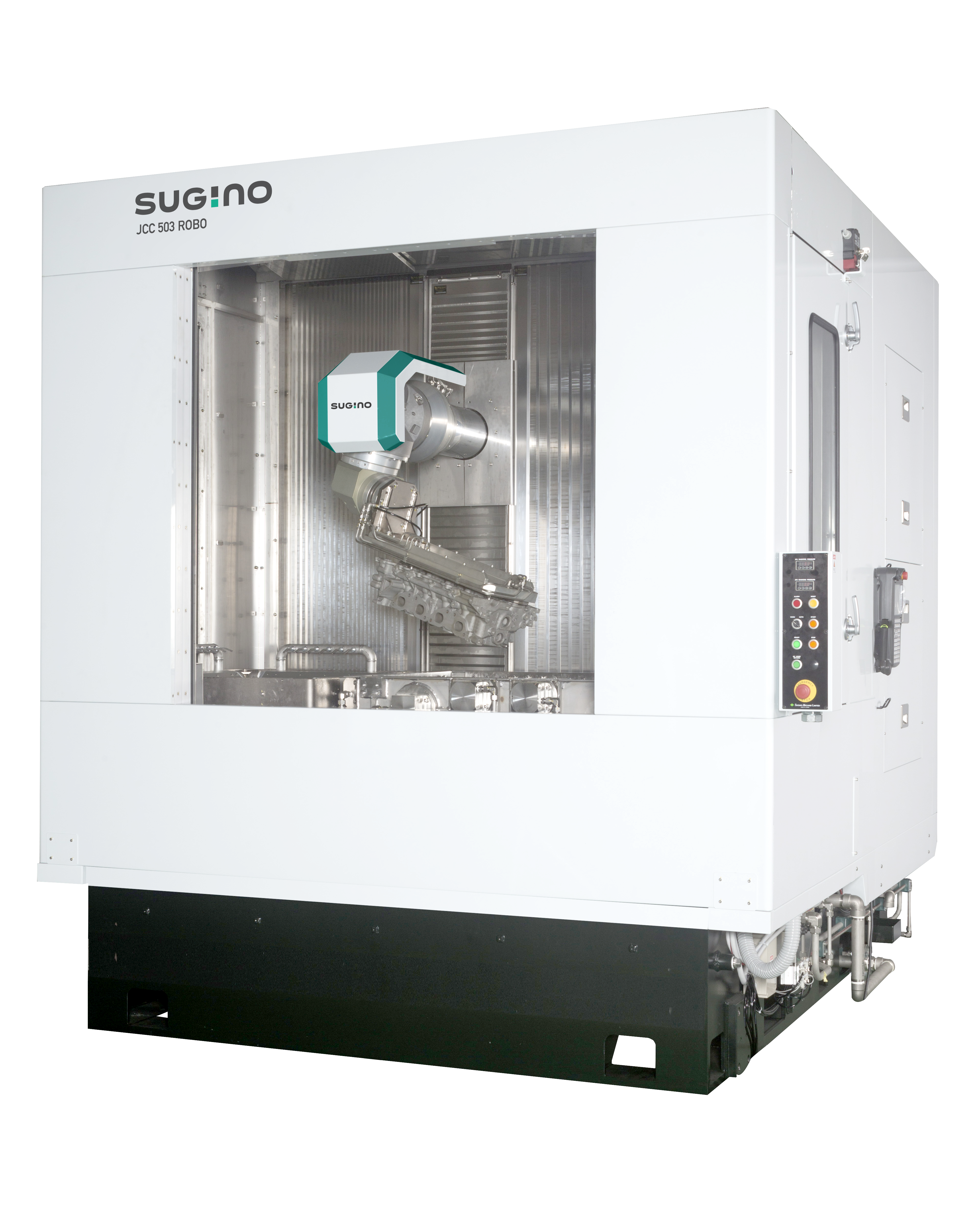

JCC 503 Robo CNC Submerged / Open-Air Robotic-Hand Washer
JCC 603 Robo CNC Ultra-High-Pressure Robotic-Hand Deburring
CUSTOMIZED WASHING SYSTEMS

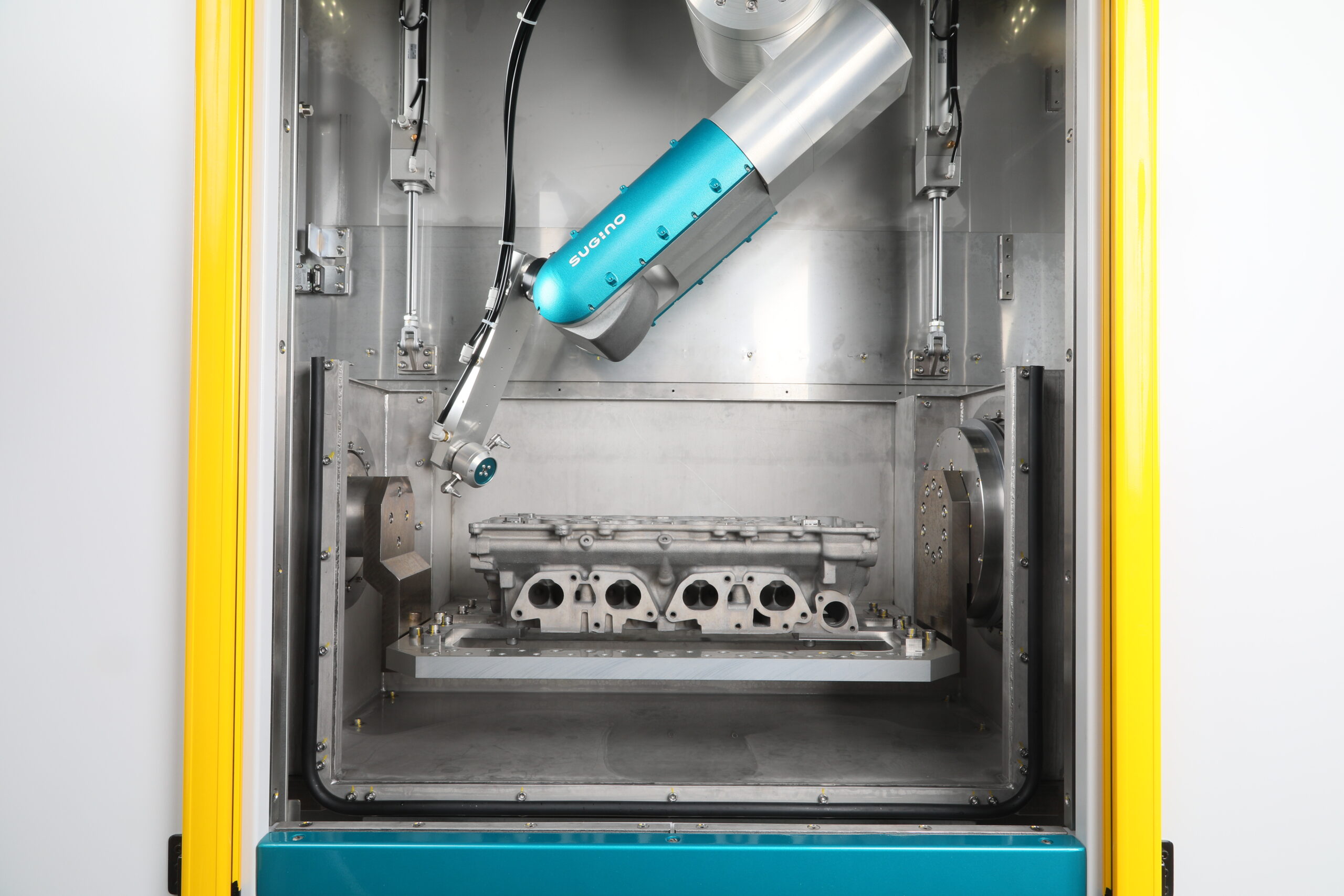

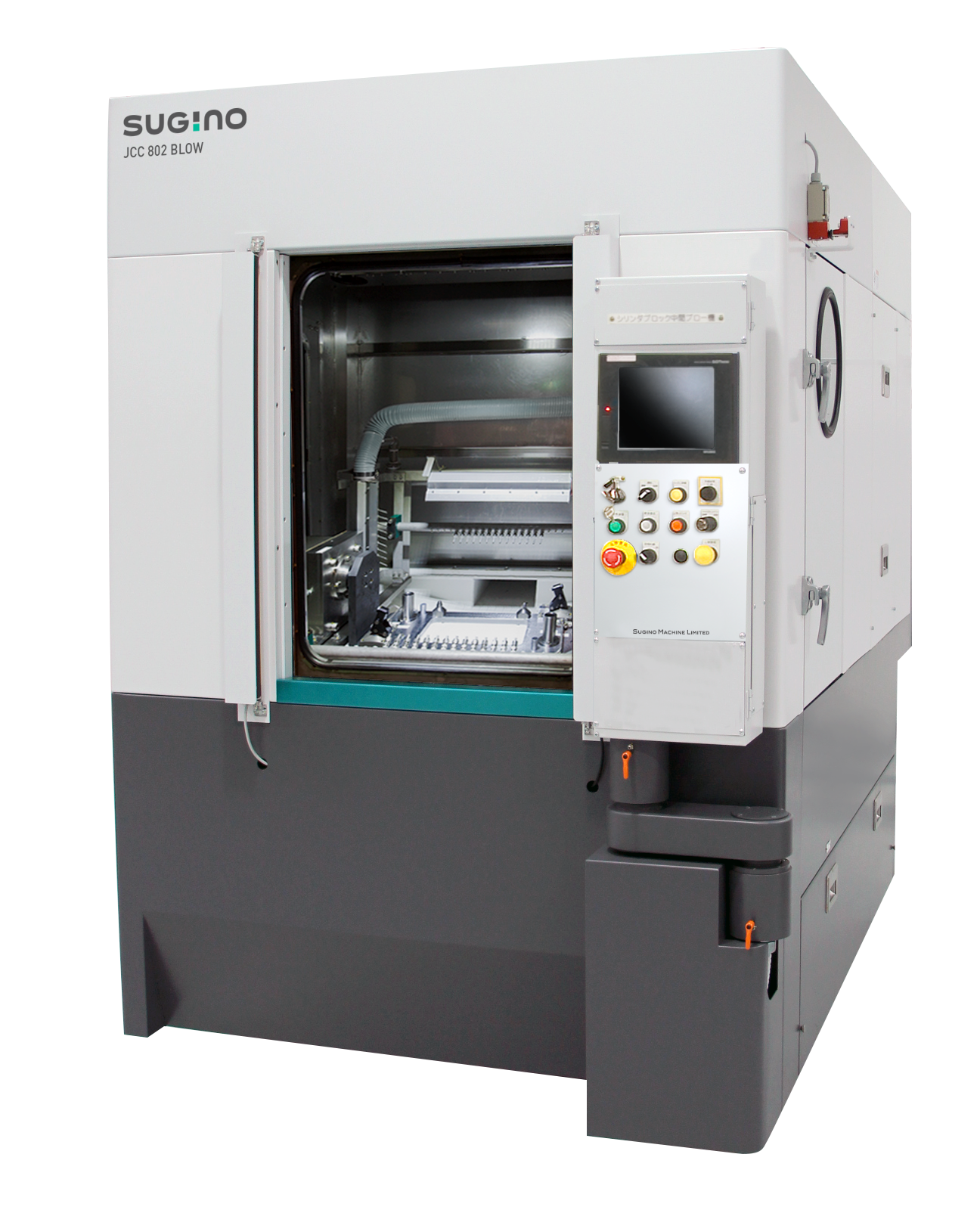

AIR BLOW DRYING SYSTEMS

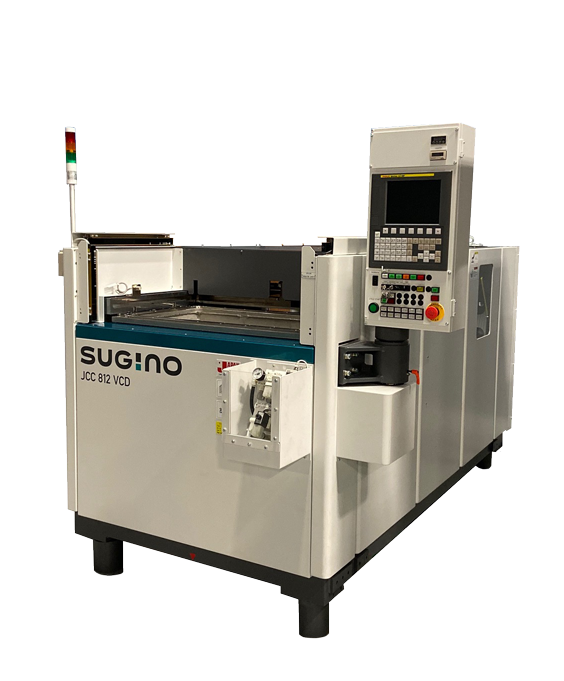

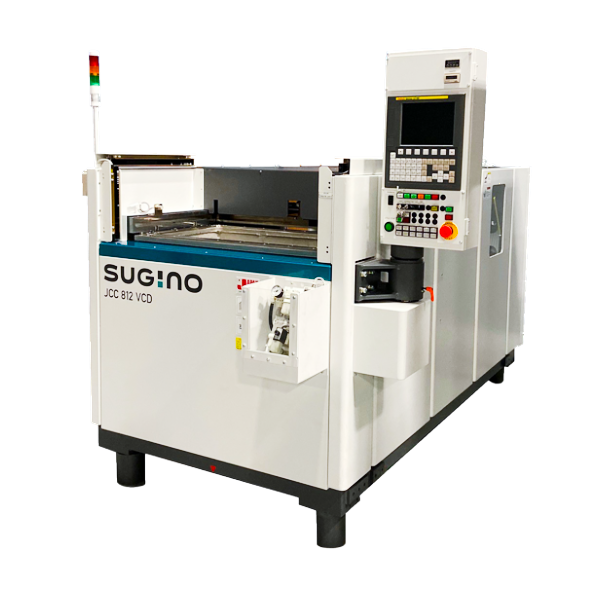

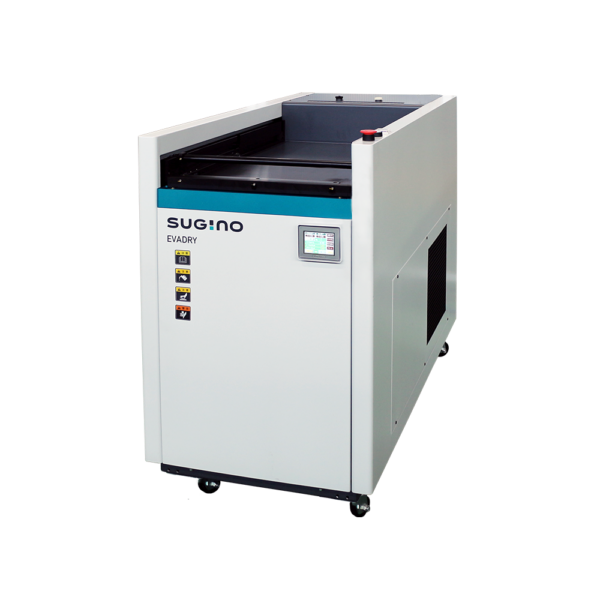

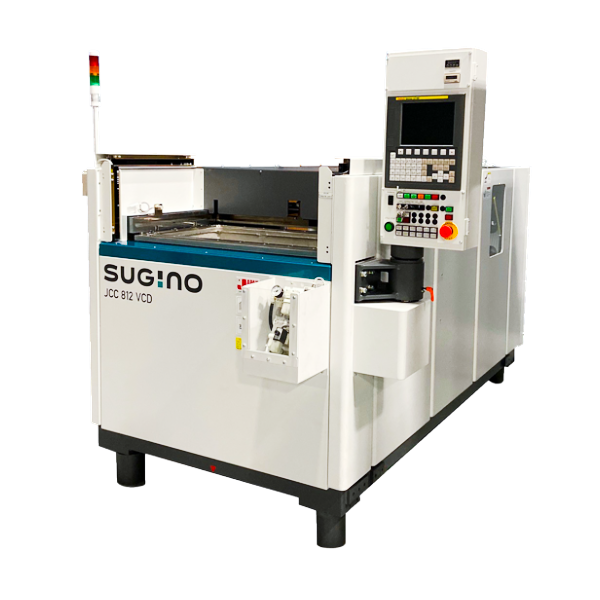

VACUUM DRYER

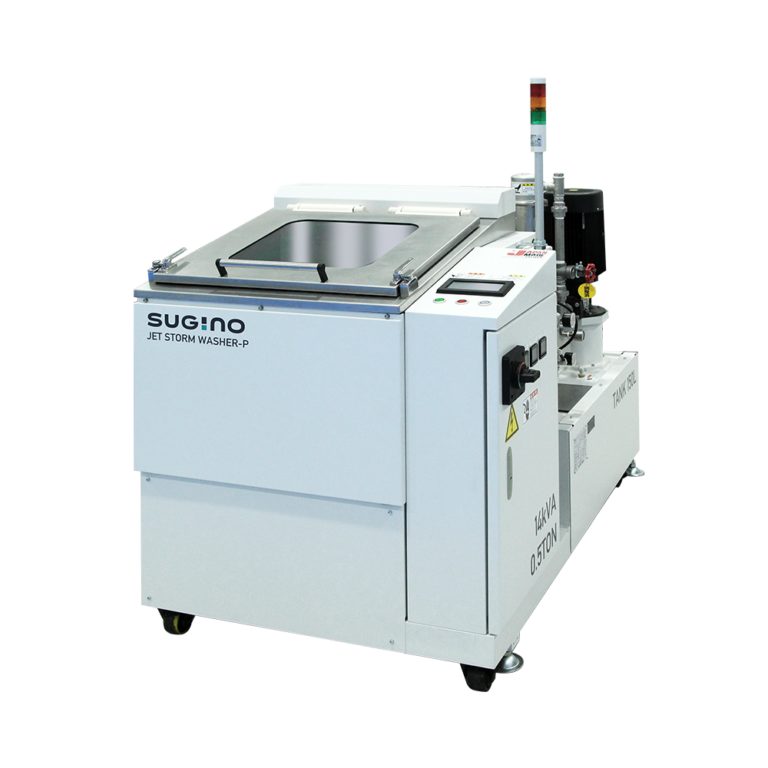

OTHER PARTS WASHERS
See it in action.
| Open-Air | Submerged | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|

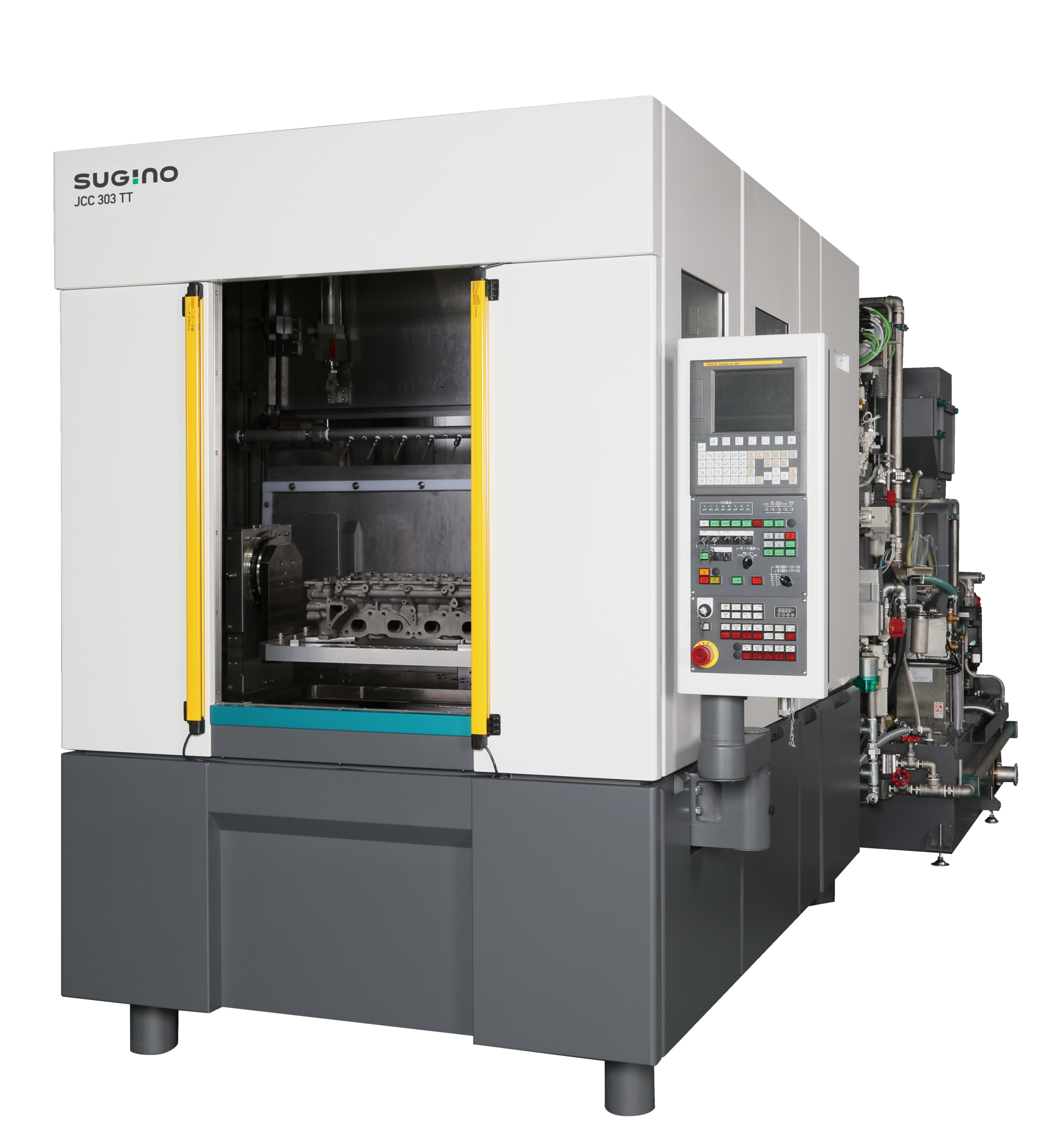

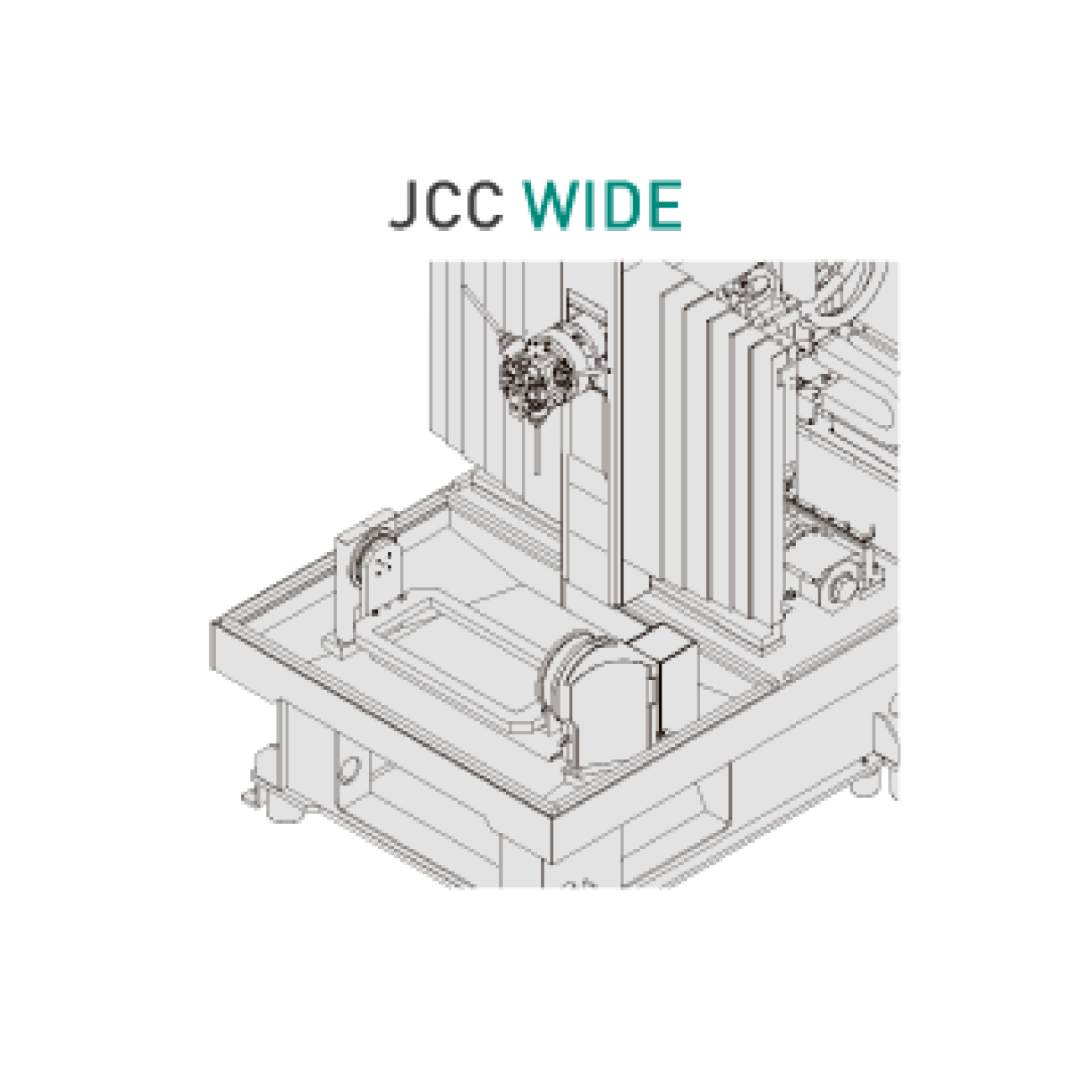

| JCC | 104 | 104 Wide | 104 Super-Wide | 303 Turn-Table | 403 U-Jet | 431 U-Jet Super-Wide | 421 U-Jet Turn-Table | 431 U-Jet Turn-Table | ||
| Model | W6750F | W6A50F | W6G50F | W6750TF | W6A50TF | W6750UF | W6A50UF | R6G50UF | W6750UTF | W6A50UTF |
| # Tools | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| X-Axis (mm) | 750 | 1000 | 1650 | 750 | 1000 | 750 | 1000 | 1600 | 750 | 1000 |
| Y-Axis (mm) | 500 | 500 | 490 | 500 | 500 | 500 | 500 | 650 | 500 | 500 |
| Z-Axis (mm) | 500 | 500 | 500 | 500 | 500 | 400 | 400 | 900 | 350 | 350 |
